XT7-GALV – 91″ GALVANIZED LOWRIDER BUMPER PULL DUMP TRAILER

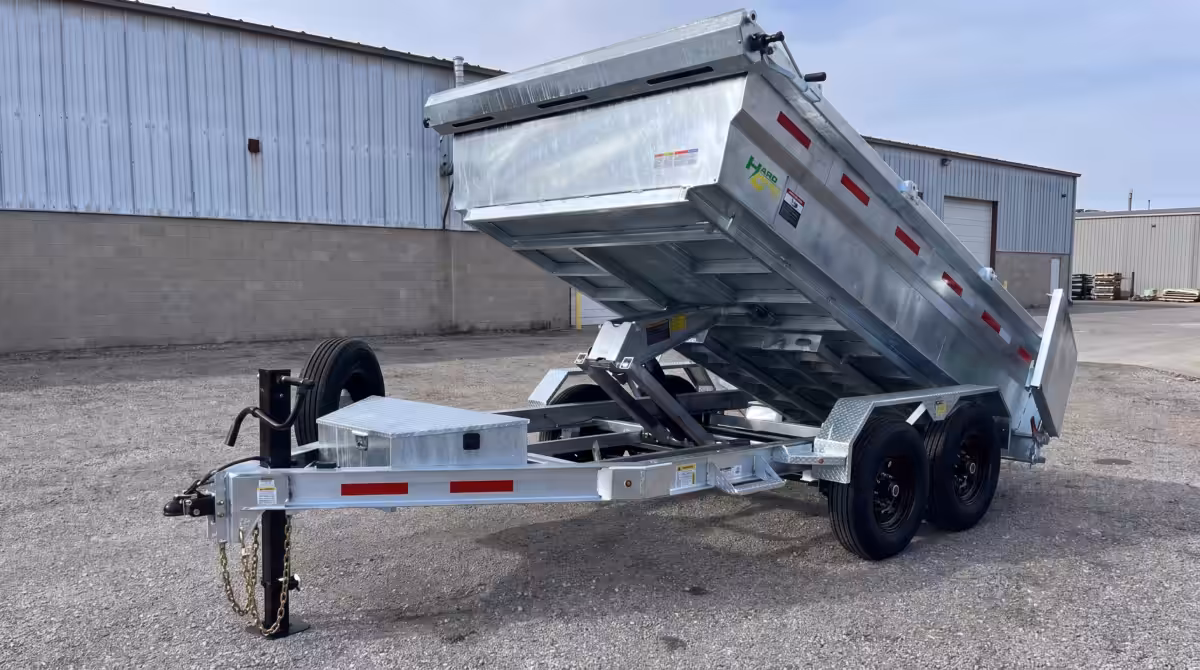

  • XT7 GALV1

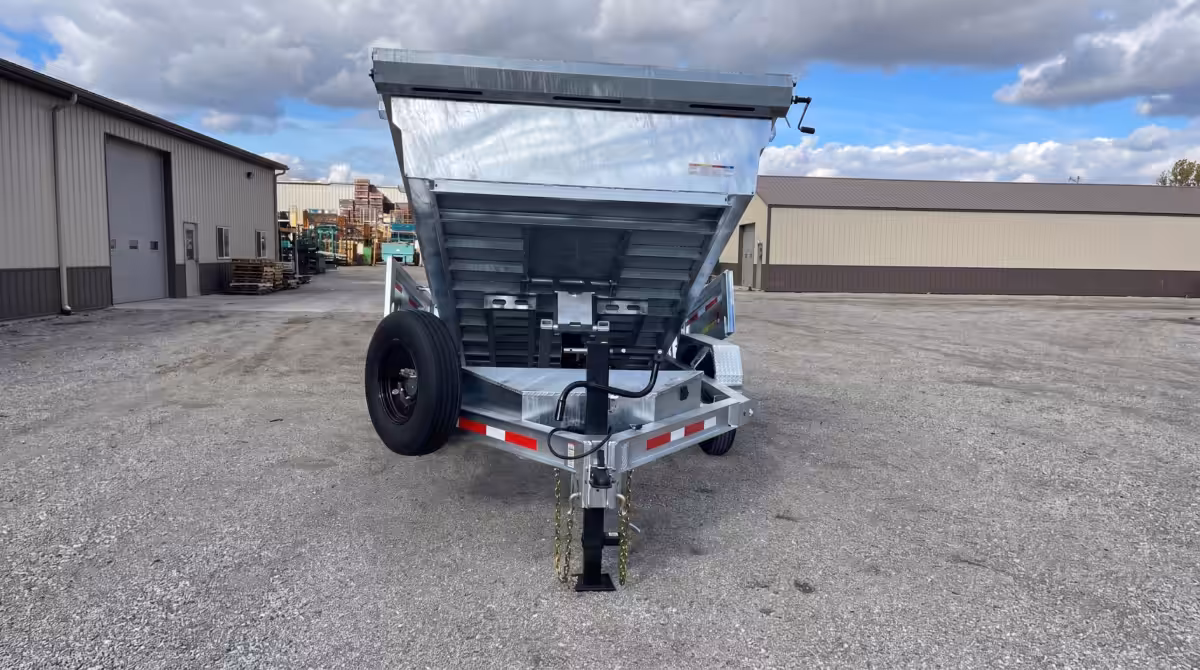

  • XT7 GALV2

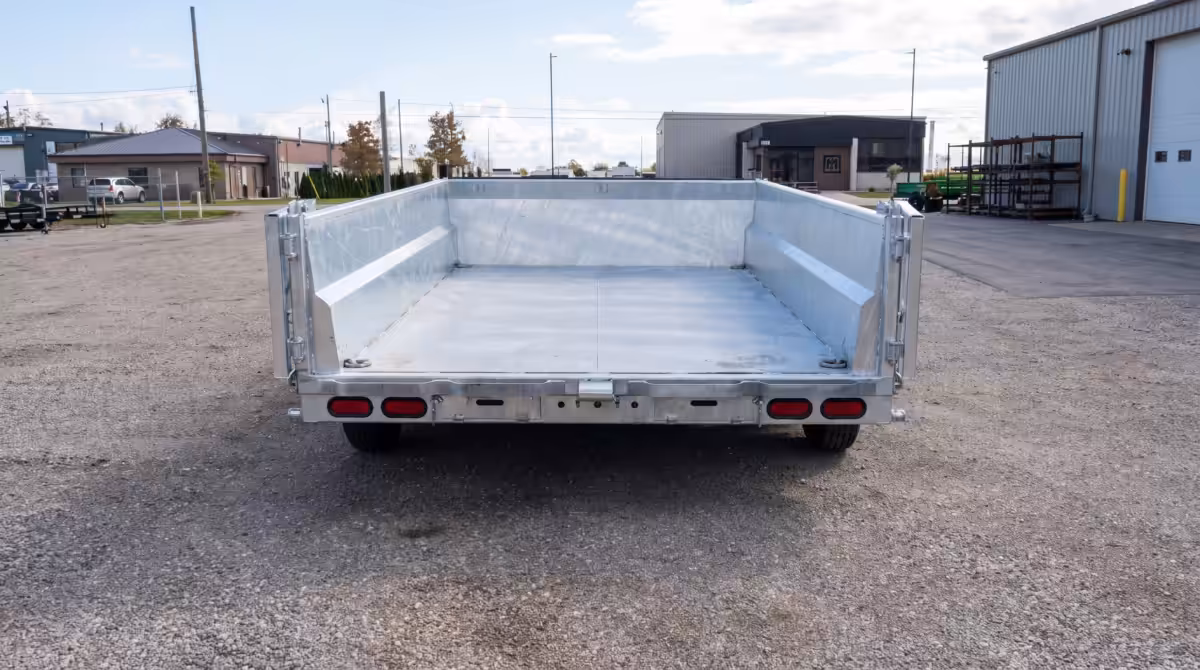

  • XT7 GALV3

Available in 7′ x 12′ and 7′ x 14′ configurations, the XT7-GALV brings lasting corrosion protection to one of the most capable dump trailers in the HardCore lineup. It is built to handle demanding work while standing up to harsh weather, road salt, moisture, and everyday jobsite conditions.

Unlike a painted or powder-coated finish, the XT7-GALV is fully submerged in molten zinc during the hot-dip galvanizing process. The zinc bonds directly to the steel, creating a durable protective barrier that reaches inside tight pockets, seams, edges, and other areas conventional coatings can miss. The result is complete, long-term protection against rust and corrosion.

Built for contractors, landscapers, property owners, and operators working in demanding environments, the XT7-GALV combines serious hauling capability with controlled, dependable dumping. Its robust hydraulic scissor-lift system provides stable lifting through the dump cycle, while the 45-degree tilt angle supports efficient material unloading. Adjustable HD QuickSlide™ ramps and integrated loading features add even more versatility to every job.
From the chassis and dump body to the smallest welded components, the XT7-GALV is galvanized inside and out. It is built for operators who expect their equipment to work hard, withstand the elements, and deliver dependable performance for years to come.

Fast Facts

XT7-GALV – 91″ GALVANIZED LOWRIDER BUMPER PULL DUMP TRAILER Spec Sheet

Dimensions

  • Length12'
  • Width91"
  • Deck Height27"

Finish

  • TypePowder Coat
  • PreparationSandblast
  • Stock ColorBlack

Weight Ratings

  • GVWR7,000 / 10,400 lbs
  • GAWR3,500 / 5,200 lbs
  • Empty Weight3,020 / 3,130 lbs
  • Load Capacity3,870 / 7,270 lbs
  • Cargo Capacity4.05 yd³

Warranty

  • Trailer3 year(s) limited
  • AxleManufacturer year(s)
  • Paint1 year(s)

Tongue

  • Type6" (8.5 lb/ft) Ultra Strong I Beam frame
  • Tongue Length66.5"

Coupler

  • Coupler2-5/16" Adjustable hitch (6-Hole)

Jacks

  • Front Jacks7,000 lbs Spring Loaded Adjustable jack

Tool Boxes

  • Tool BoxLockable 4.4 Cu ft toolbox, charger, pump battery & remote control

Safety System

  • Safety Chains2
  • Breakaway SystemSafety breakaway system w/cable
  • Reflective TapeDOT safety tape

Frame

  • Main Frame6" Ultra strong I Beam
  • Cross Member3" x 3" 7GA SQ Tube
  • Fenders14 ga with 11 ga reinforcements
  • RampsHD QuickSlide Ramps 5'8"

Spare Mount

  • Spare Tire MountYes

Dump Bed

  • Inside Width73"
  • Side Height22" fully formed sides, 12-ga top rail measuring 2.75" x 4.25""
  • Flooring11 ga smooth plate
  • Stake Pockets8
  • D-Rings4 - 5/8" ubsude 2 - 1/2" outside

Rear Gate

  • Gate3-way Adjustable Spreader Gate
  • Latching SystemCoreLatch locking system

Lift System

  • PowerDeep cycle Battery
  • PumpKTI 12V dual action hydraulic pump
  • ControllerHand held remote with 15 foot cord.
  • LiftHeavy Duty hydraulic scissor lift
  • Cylinder5" x 16" Cylinder
  • Tilt Angle45 °

Tarp

  • Tarp Kit68" wide tarp with a crank roller (optional)

Tires

  • SizeST225/75R15 LRE Tires
  • Ply8
  • Rating2,830
  • Rims15" 5-Hole Wheels (3.5 K) / 15" 6-Hole Wheels (5.2K)
  • Bolt Pattern5X4.5 / 6X5.5

Suspension

  • Axle TypeTandem axles includes electric brakes
  • Axles3.5K / 5.2K
  • Rating3,500 / 5,200
  • BrakesElectric

Wiring

  • Front Plug7 pin
  • Frame WiringAll weather wiring & harness

Battery & Charging

  • BatteryDeep Cycle
  • Charging System5A 12v

Lighting

  • Side MarkersLights Full DOT approved LED sealed lights
  • Rear LightsLED markers DOT Approved
