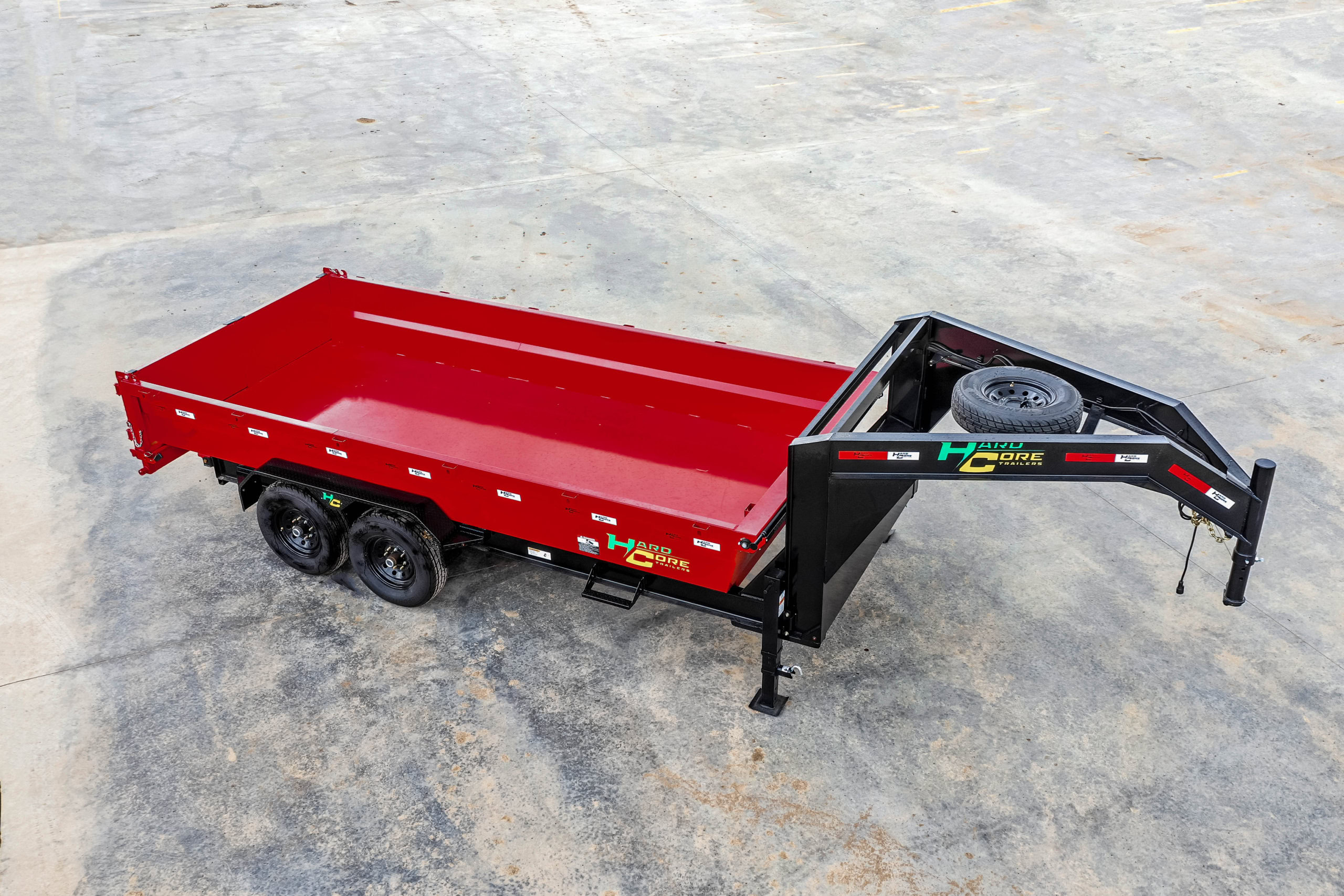

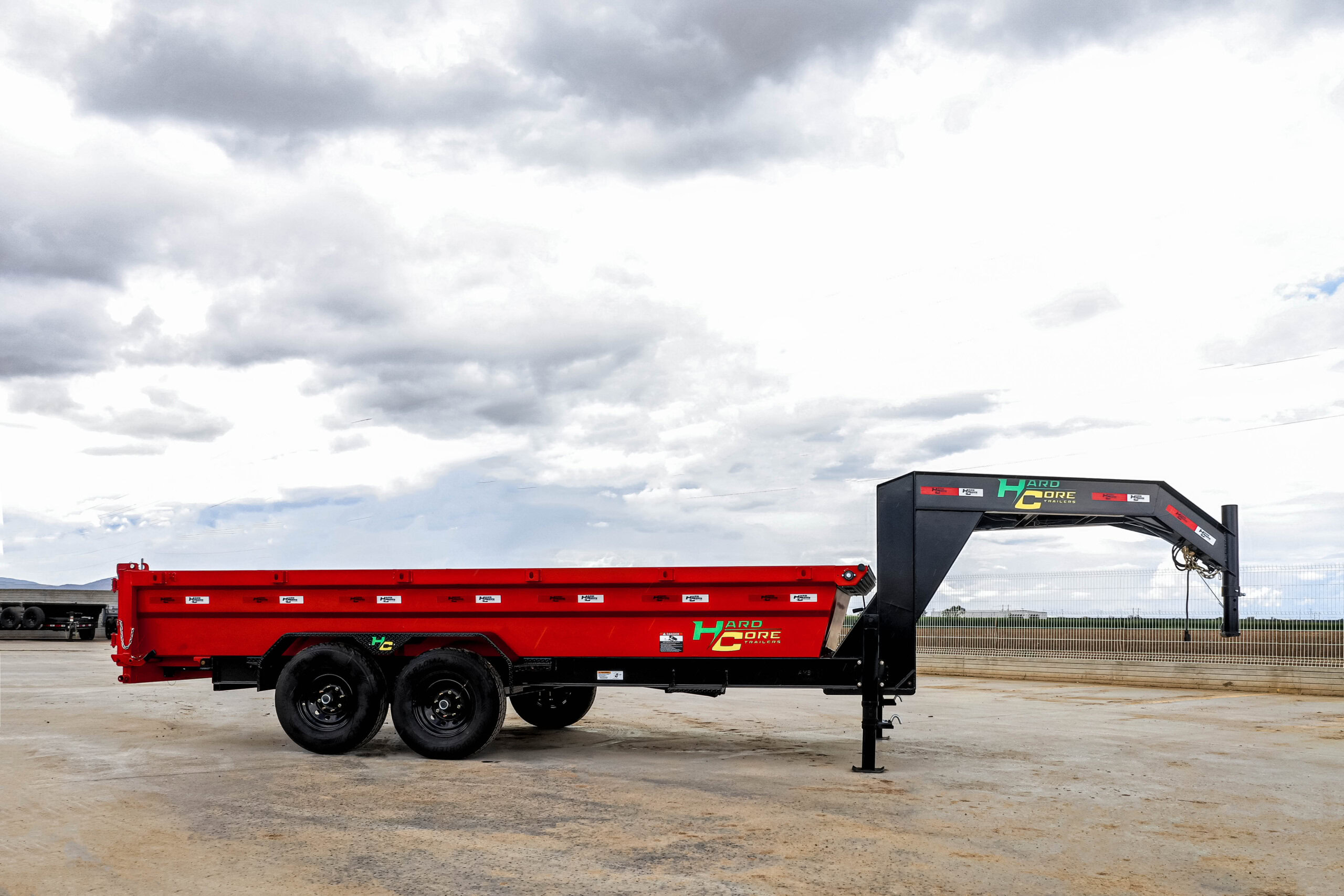

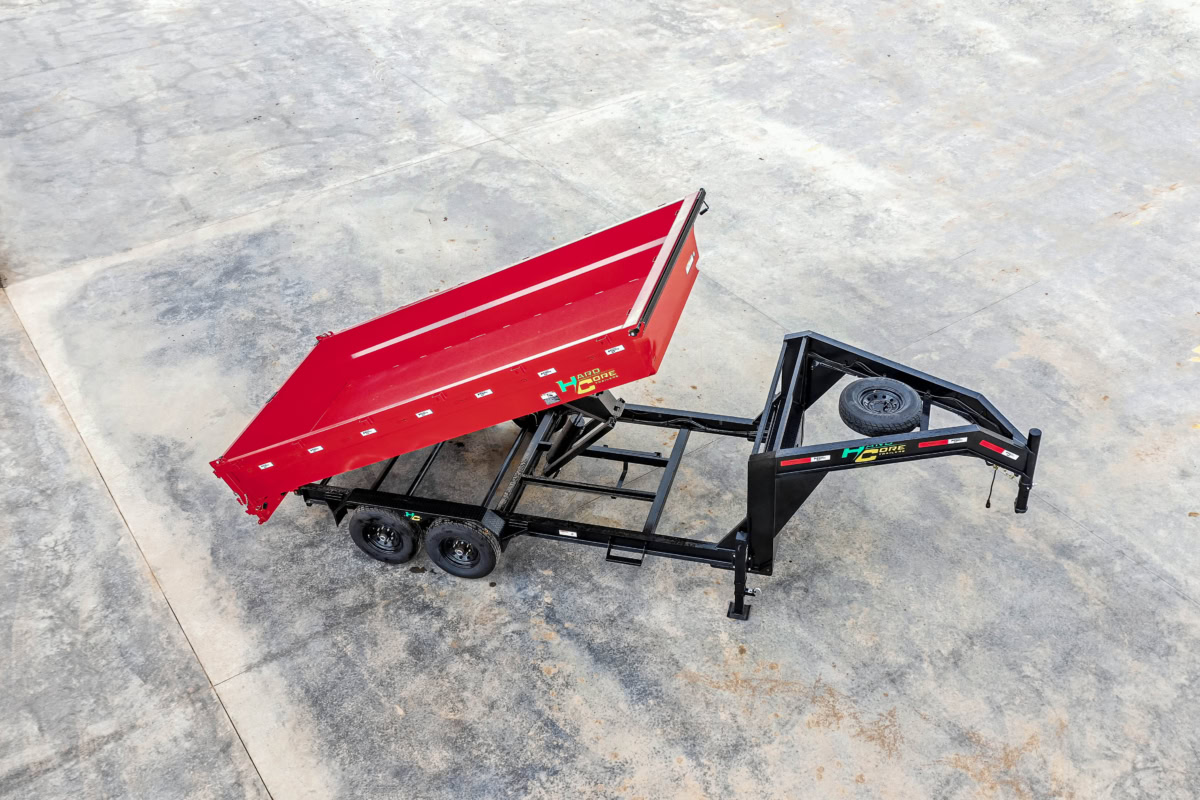

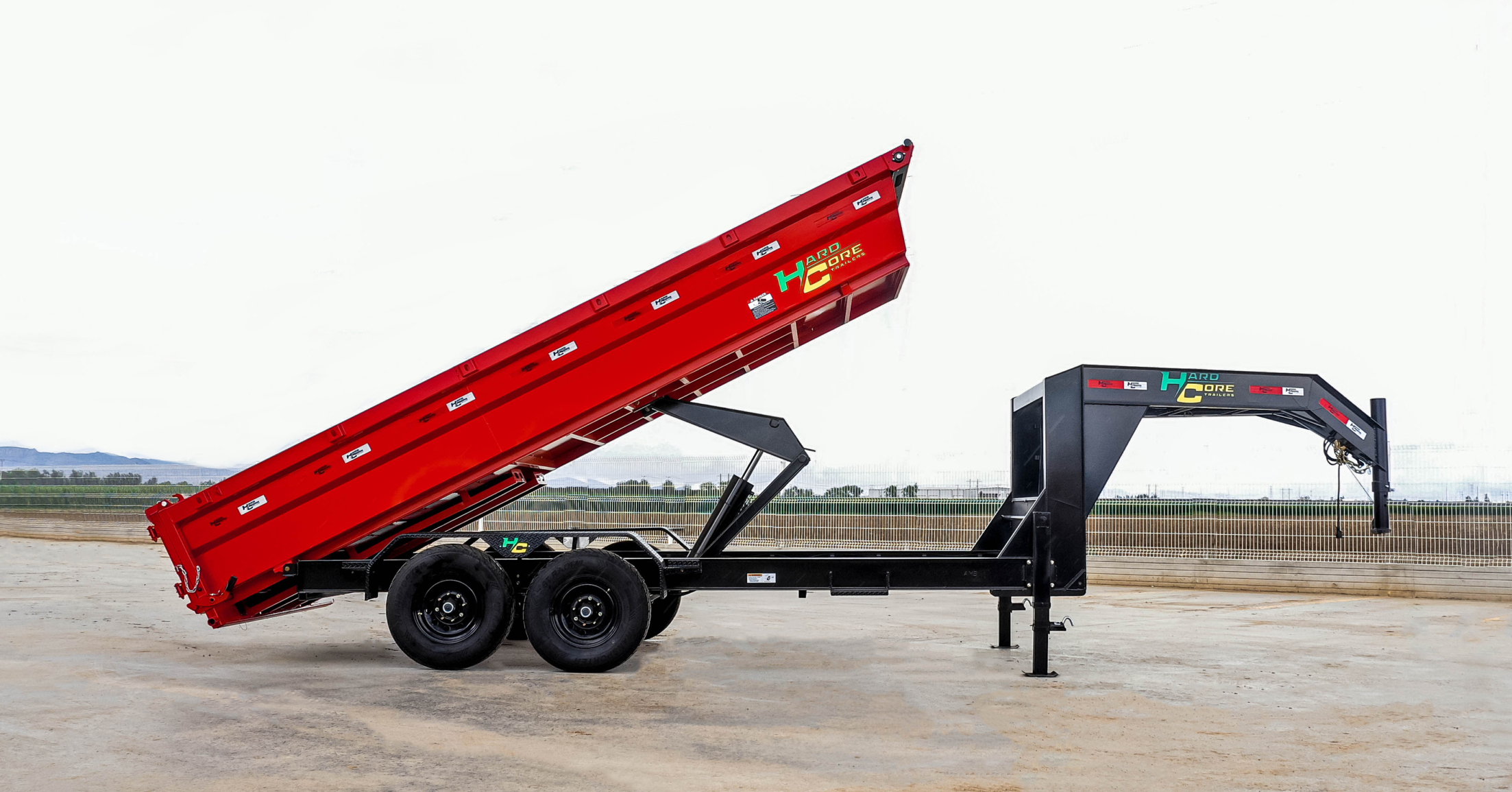

XT7 – 91″ LOWRIDER GN DUMP TRAILER

  • Default
  • Default
  • Default
  • Default

The XT7 – 91″ LowRider Gooseneck Dump Trailer gives operators the balance of gooseneck strength and low-profile accessibility—built to keep every haul steady and every load within reach. Designed for contractors and crews who need both stability on the road and easy access on the job site, it’s a trailer built for serious work.

Constructed from high-strength steel and powered by a heavy-duty hydraulic system, the XT7 LowRider GN delivers fast, controlled dumps with the durability to stand up to daily use. Its 91″ wide stance ensures hauling confidence, while the gooseneck connection improves weight distribution and towing security when carrying heavy payloads.

With lower sidewalls for easier equipment loading and versatile material handling, this trailer makes quick work of demanding jobs. Strong, stable, and built to perform, the XT7 LowRider GN is a workhorse that’s ready whenever you are.

At HardCore Trailers, strength and usability go hand in hand. The XT7 LowRider Gooseneck Dump Trailer proves that hardcore hauling power doesn’t have to sacrifice accessibility—it delivers both, job after job.

Fast Facts

Model number(s):
7X14GNLS-MX
Trailer style:
XT7 – 91″ LOWRIDER GN DUMP TRAILER Spec Sheet

Dimensions

  • Length14' / 16'
  • Width91"
  • Height27"

Finish

  • TypePowder coat
  • PreparationSandblast
  • Stock ColourBlack

Weight Ratings

  • GVWR14,000 / 16,000 lbs
  • GAWR7,000 / 8,000 lbs
  • Empty Weight5,401 / 5,742 lbs
  • Load Capacity8,599 / 10,258 lbs

Warranty

  • Trailer3 year(s)
  • AxleManufacturer 3 year(s)
  • Paint1 year(s)

Tongue

  • Type8" (10 lb/ft) Ultra Strong I Beam frame
  • Tongue Length89"

Coupler

  • Coupler2-5/16" adjustable gooseneck coupler 30K LBS

Jacks

  • Front Jacks2 - 12,000 lbs spring loaded adjustable leg crank

Tool Boxes

  • Tool BoxLockable 9.2 cu ft toolbox, charger, pump battery & remote control

Safety System

  • Safety Chains2
  • Breakaway SystemSafety breakaway system w/cable
  • Reflective TapeDOT safety tape

Frame

  • Main Frame8" (10 lb/ft) Ultra Strong I Beam frame
  • Cross Member3" x 3" 7GA SQ Tube

Deck

  • Flooring7 gauge smooth plate
  • D-Rings4 - 5/8" inside 2 - 1/2" outside

Side

  • Side Perimeter24" 10 ga fully formed sides, 10-ga top rail measuring 2.78" x 4.25"
  • Sides14ga Step 11ga Sides
  • Stake Pockets13
  • Fenders14 ga with 11 ga reinforcements

Cargo

  • Cargo Capacity7.65 / 8.53 yd³

Rear Gate

  • GateAdjustable spreader gate & barn doors
  • Latching SystemCoreLatch™ Door locking system

Lift System

  • PowerDeep cycle Battery
  • PumpKTI 12V dual action hydraulic pump
  • ControllerHand held remote with 15 foot cord.
  • LiftHeavy Duty hydraulic scissor lift
  • Cylinder5" / 6" x 21" Cylinder
  • Tilt Angle45 °

Tires

  • SizeST235/80R16LRE Tires (7 K) or ST235/85R16LRE Tires (8 K)
  • Ply10 / 14
  • Rating3,420 / 3,970
  • Rims16" 8-Hole wheels
  • Bolt Pattern8x6.5

Suspension

  • Axle TypeTandem spring axles includeselectric brakes
  • Axles7K / 8K
  • Rating7,000 / 8,000
  • BrakesElectric

Wiring

  • Front Plug7 pin
  • Frame WiringAll weather wiring & harness

Battery & Charging

  • BatteryDeep Cycle
  • Charging System5A 12v

Lighting

  • Side MarkersLights Full DOT approved LED sealed lights
  • Rear LightsLED markers DOT Approved

FAQs for Dump Trailers

In the market for a dump trailer? Here are some of the most common questions we hear, along with answers that can help you in making the right purchase.
Have more questions? Contact us anytime.

Q: How do I know what size dump trailer I need?
A: The size of dump trailer you need depends on the type and volume of material you plan to haul. Common sizes for dump trailers range from 5′ x 10′ for smaller jobs to 7′ x 14′ or larger for heavy-duty tasks. Consider the capacity, dimensions, and weight limits that best suit your work.

Q: Should I choose a bumper pull or gooseneck dump trailer?
A: Bumper pull trailers are easier to maneuver and are ideal for lighter loads and tighter spaces. Gooseneck trailers offer better stability and higher weight capacity, making them suitable for heavy-duty applications.

Q: What materials can a dump trailer handle?
A: Dump trailers are designed to handle a wide range of materials, including gravel, dirt, sand, mulch, debris, and construction materials. Ensure your dump trailer has the appropriate capacity and durability for your specific needs.

Q: How do I know if my vehicle can tow a dump trailer?
A: Check your vehicle’s towing capacity in the owner’s manual. Compare it with the dump trailer’s Gross Vehicle Weight Rating (GVWR), which includes the trailer’s weight and load. Your vehicle should be able to safely tow the full GVWR.

Q: What type of hydraulic system is best for a dump trailer?
A: Most dump trailers use either scissor lift or direct push hydraulic systems. Scissor lifts provide more stability and are better for heavier loads, while direct push systems are more straightforward and cost-effective for lighter loads.

Q: How do I maintain my dump trailer?
A: Regular maintenance includes checking the hydraulic system, inspecting the tires, lubricating moving parts, and ensuring all lights and brakes function properly. You should also clean the trailer bed after use to prevent material build-up and corrosion.

Q: What are the benefits of high-side vs. low-side dump trailers?
A: High-side dump trailers offer increased capacity, making them ideal for hauling bulkier materials. Low-side trailers are easier to load and unload, especially with smaller equipment like wheelbarrows or skid steers.

Q: How do I ensure I’m getting a quality dump trailer?
A: Look for dump trailers made with high-quality materials like reinforced steel frames and durable hydraulic systems. Read reviews, ask for recommendations, and buy from reputable manufacturers who stand behind their products with warranties and customer support.
