XT7 – 91″ HIGHHAUL GN DUMP TRAILER

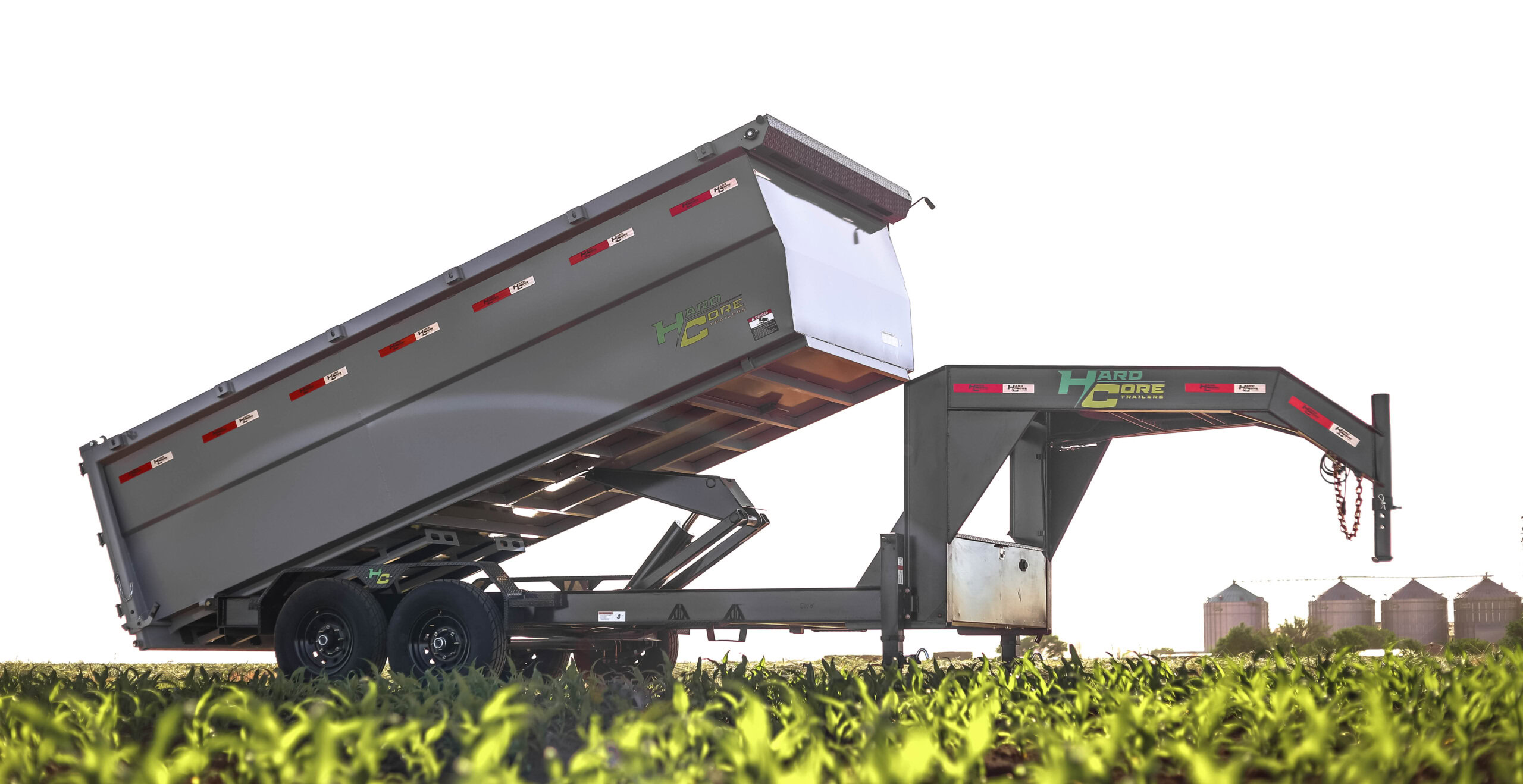

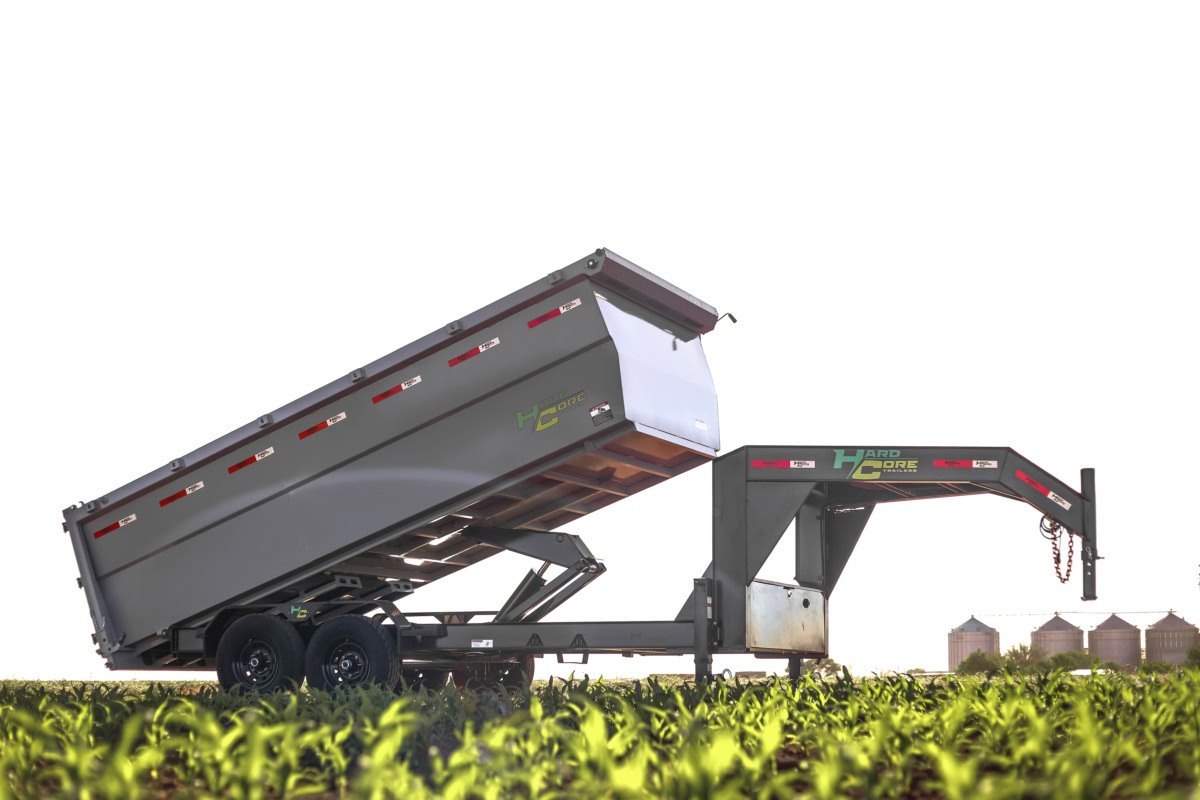

  • Xt7gnhs gallery 5

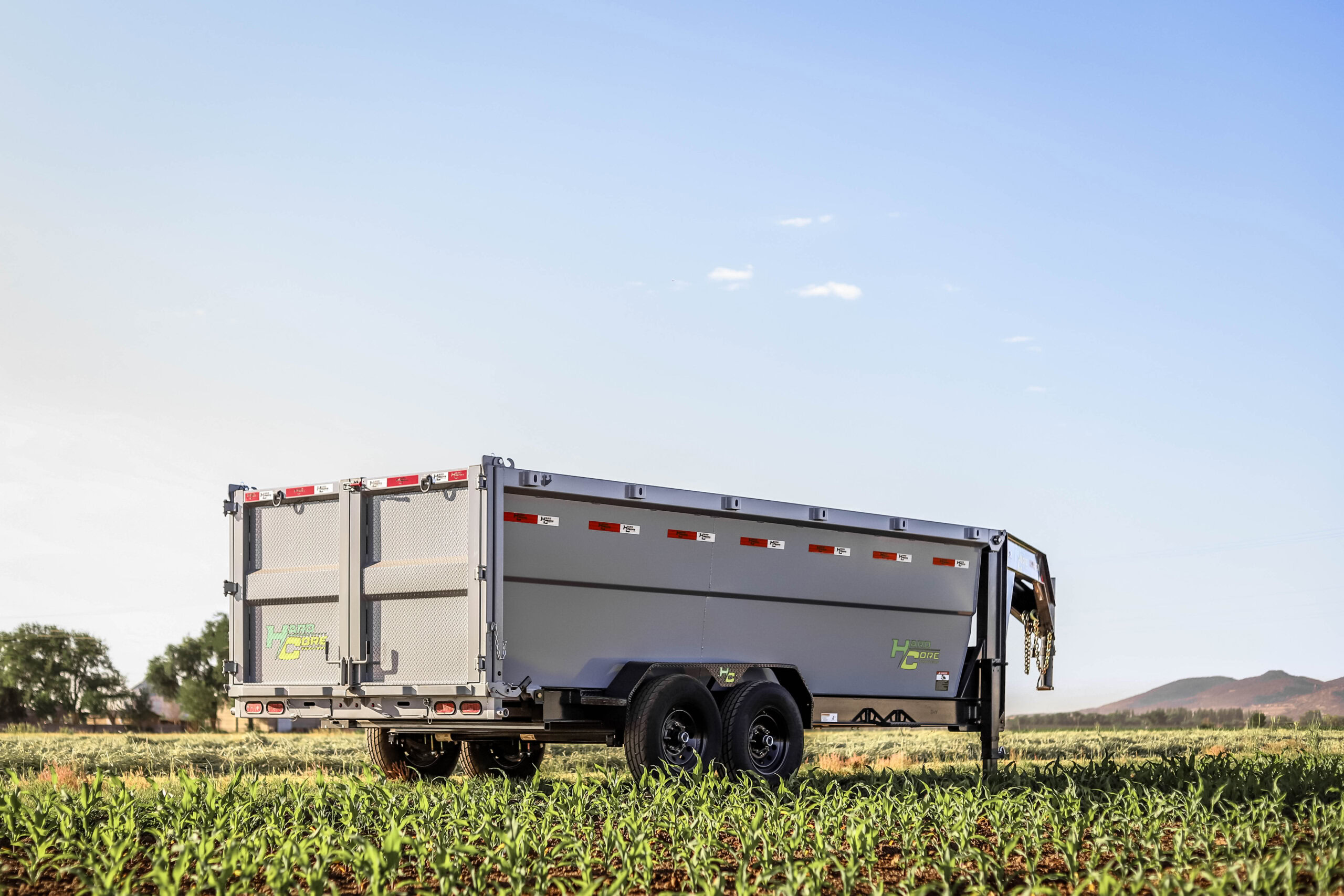

  • Xt7gnhs gallery 1

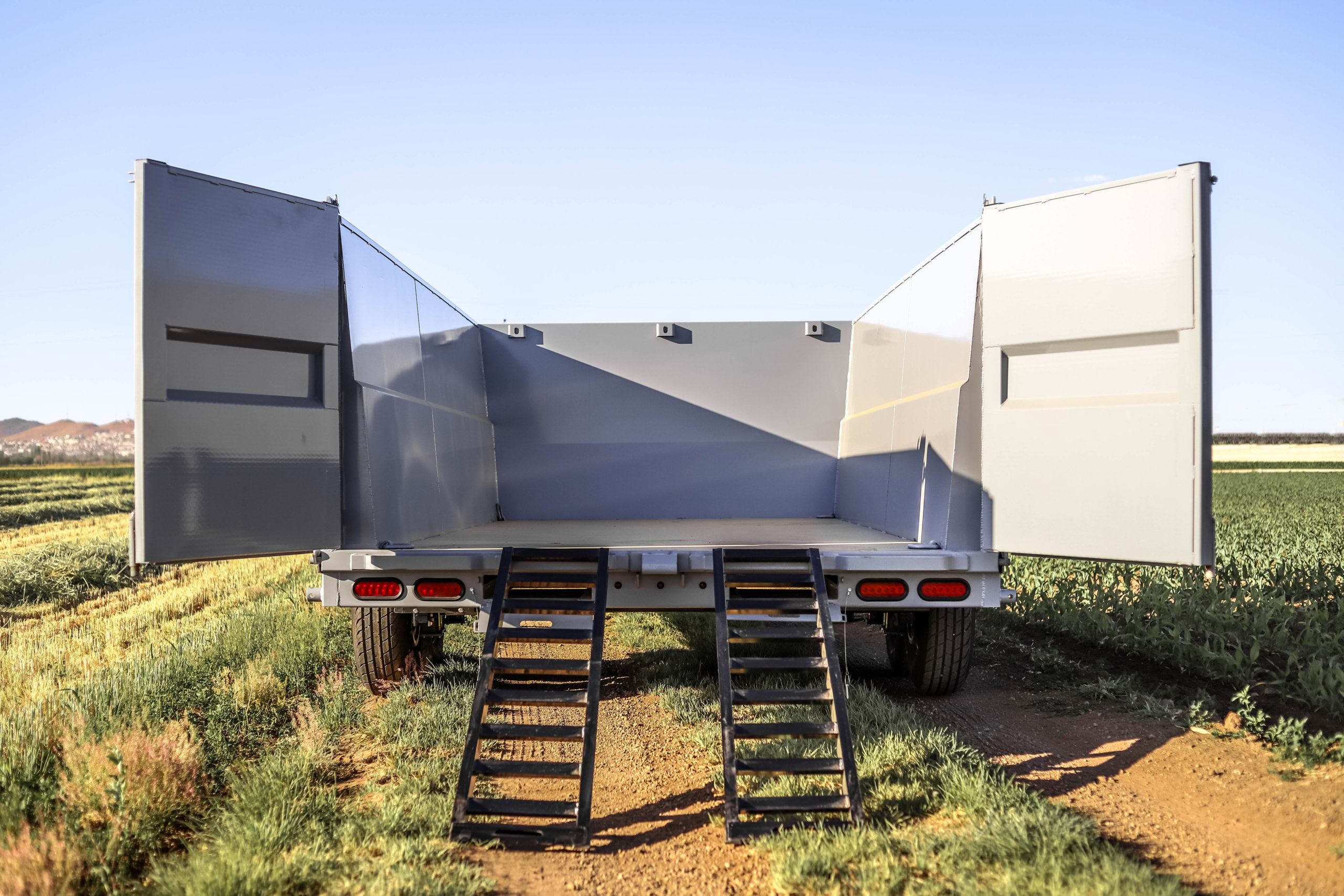

  • Xt7gnhs gallery 3

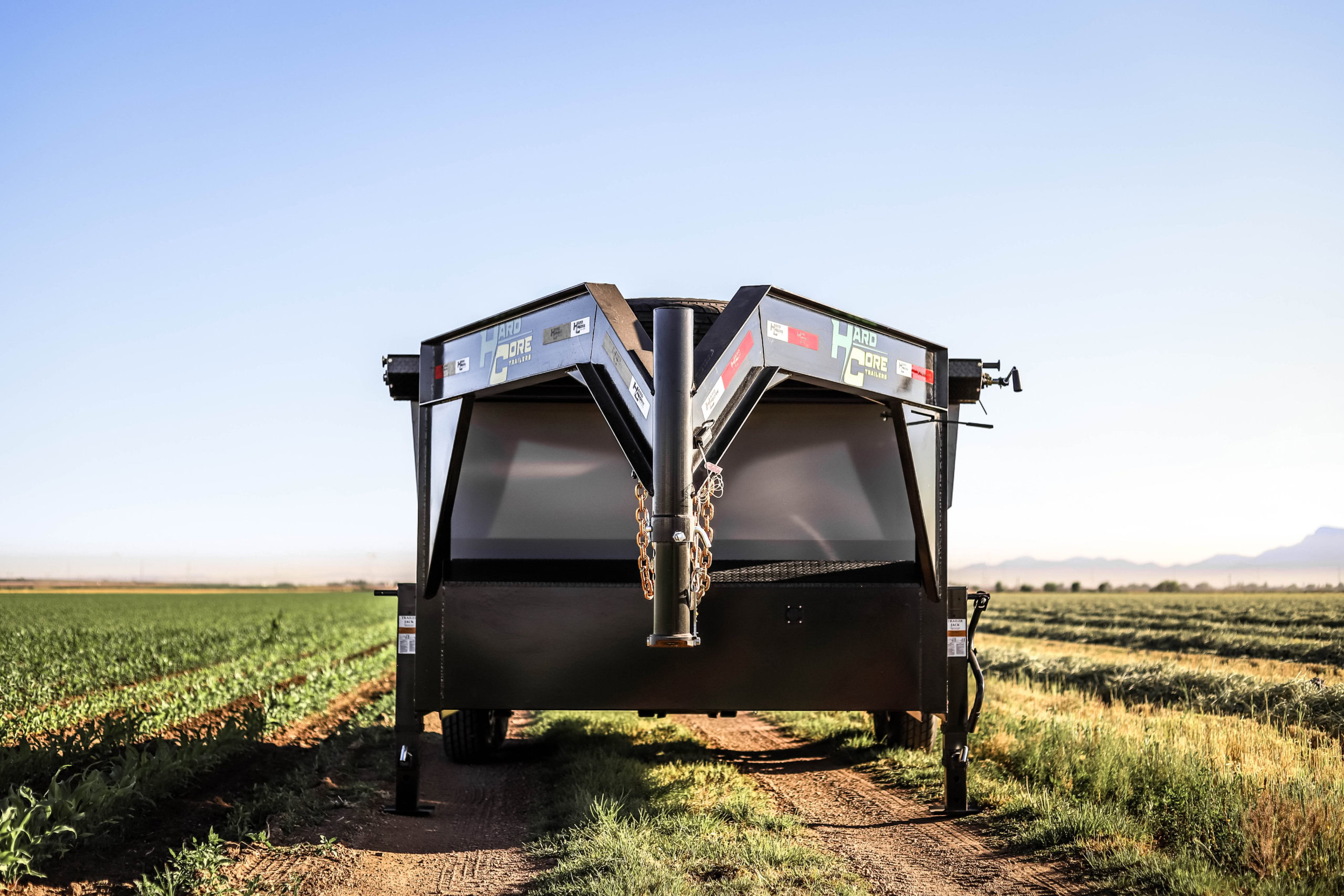

  • Xt7gnhs gallery 2

The XT7 – 91″ HighHaul Gooseneck Dump Trailer is built for operators who need maximum capacity, superior stability, and uncompromising strength. Its tall 48″ sides give the XT7 HighHaul the extra capacity needed for bulky loads and debris that demand more volume with every haul.

Constructed from high-strength steel and powered by a robust hydraulic system, the XT7 HighHaul GN is engineered for tough, daily workloads. Its 91″ wide stance keeps loads stable, while the gooseneck connection provides enhanced balance and control, even when hauling at full capacity.

From demanding construction projects to large-scale landscaping jobs, the XT7 HighHaul GN is designed to keep crews moving and productivity high. With its combination of high sidewalls and gooseneck strength, this trailer is a dependable partner for serious haulers.

At HARDCORE Trailers, we build for the toughest demands. The XT7 HighHaul Gooseneck Dump Trailer proves that when it comes to hauling more, higher, and heavier—you can count on HARDCORE performance every time.

Fast Facts

XT7 – 91″ HIGHHAUL GN DUMP TRAILER Spec Sheet

Dimensions

  • Length16'
  • Width91"
  • Deck Height27"

Finish

  • TypePowder coat
  • PreparationSandblast
  • Stock ColourBlack

Weight Ratings

  • GVWR14,000 / 16,000 lbs
  • GAWR7,000 lbs / 8,000 lbs
  • Empty Weight5,974 / 6,415 lbs
  • Load Capacity7,739 / 9,894 lbs
  • Cargo Capacity15.5 / 17.18 yd³

Warranty

  • Trailer3 year(s)
  • AxleManufacturer year(s)
  • Paint1 year(s)

Tongue

  • Type8" (10 lb/ft) Ultra Strong I Beam frame
  • Tongue Length89"

Coupler

  • Coupler2-5/16" adjdustable gooseneck coupler 30K LBS

Jacks

  • Front Jacks2 - 12,000 lbs spring loaded adjustable leg crank

Tool Boxes

  • Tool BoxLockable 9.2 cu ft toolbox, charger, pump battery & remote control

Safety System

  • Safety Chains2
  • Breakaway SystemSafety breakaway system w/cable
  • Reflective TapeDOT safety tape

Frame

  • Main Frame8" (10 lb/ft) Ultra Strong I Beam frame
  • Cross Member3" x 3" 7GA SQ Tube
  • RampsHD QuickSlide 6' 5"

Side

  • Fenders14 ga with 11 ga reinforcements

Spare Mount

  • Spare Tire MountYes

Dump Bed

  • Inside Width91"
  • Side Height48" 10 GA FULLY FORMED SIDES, 10-GA"
  • Flooring7 ga smooth plate flooring
  • Stake Pockets13 / 15
  • Cross Member3" channel bed with 16" on-center cross-members, 4X4 tube
  • D-Rings4 - 5/8" inside 6 - 1/2" outside

Rear Gate

  • Gate3-way Adjustable Spreader Gate
  • Latching SystemCoreLatch™ Door locking system

Lift System

  • PowerDeep cycle Battery
  • PumpKTI 12V dual action hydraulic pump
  • ControllerHand held remote with 15 foot cord.
  • LiftHeavy Duty hydraulic scissor lift
  • Cylinder6" x 21" Cylinder
  • Tilt Angle45 °

Tarp

  • Tarp Kit91" extra wide crank roller (Optional)

Tires

  • SizeST235/80R16LRE Tires
  • Ply10 / 14
  • Rating3,420 / 3,970
  • Rims16" 8-Hole wheels
  • Bolt Pattern8x6.5

Suspension

  • Axle TypeTandem spring axles includeselectric brakes
  • Axles7K / 8K
  • Rating7,000 / 8,000
  • BrakesElectric

Wiring

  • Front Plug7 pin
  • Frame WiringAll weather wiring & harness

Battery & Charging

  • BatteryDeep Cycle
  • Charging System5A 12v

Lighting

  • Side MarkersLights Full DOT approved LED sealed lights
  • Rear LightsLED markers DOT Approved
