XT5 – 68″ LOWRIDER BP DUMP TRAILER

  • Xt5 gallery 1
  • Xt5 gallery 2
  • Xt5 gallery 3
  • Xt5 gallery 4

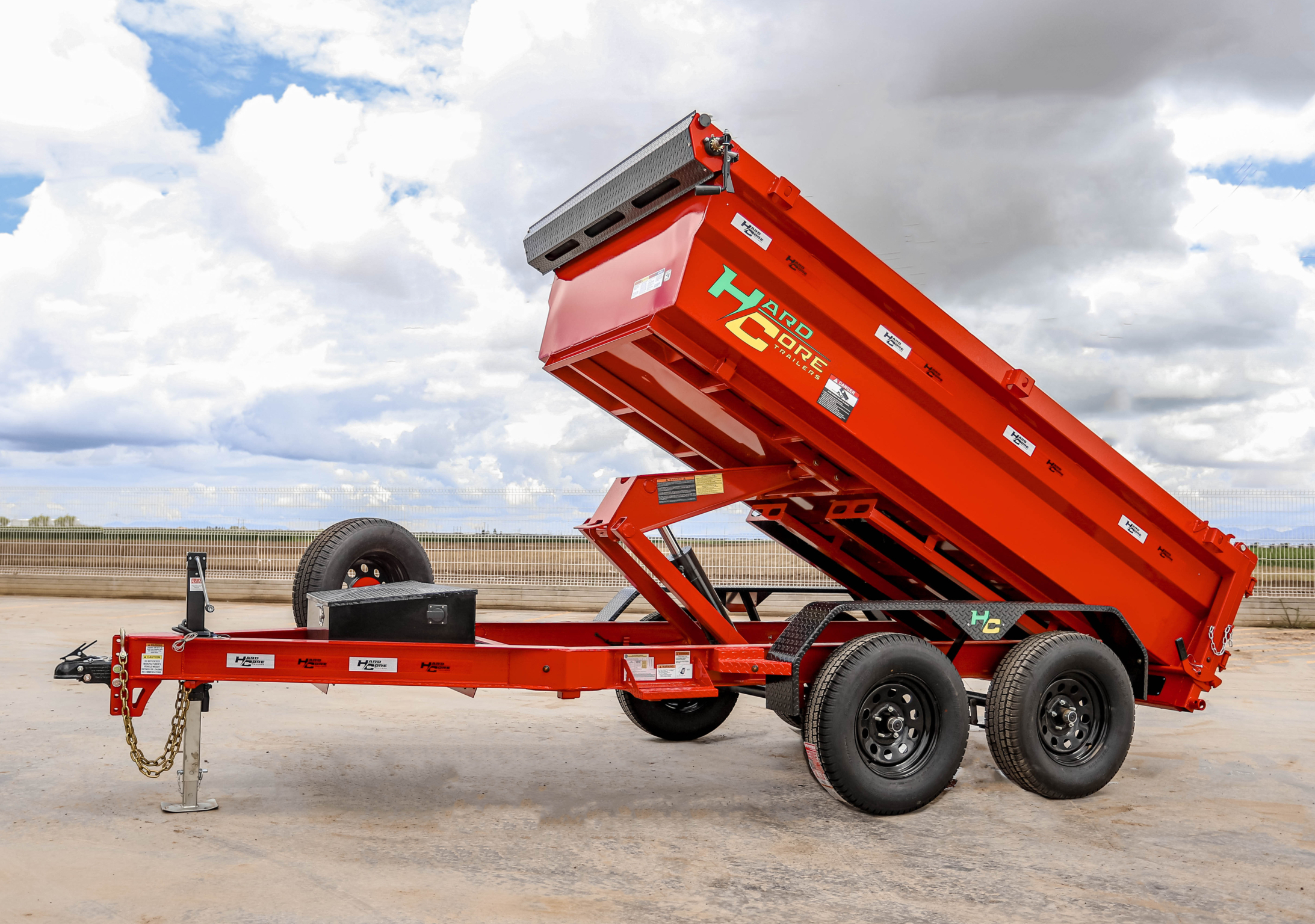

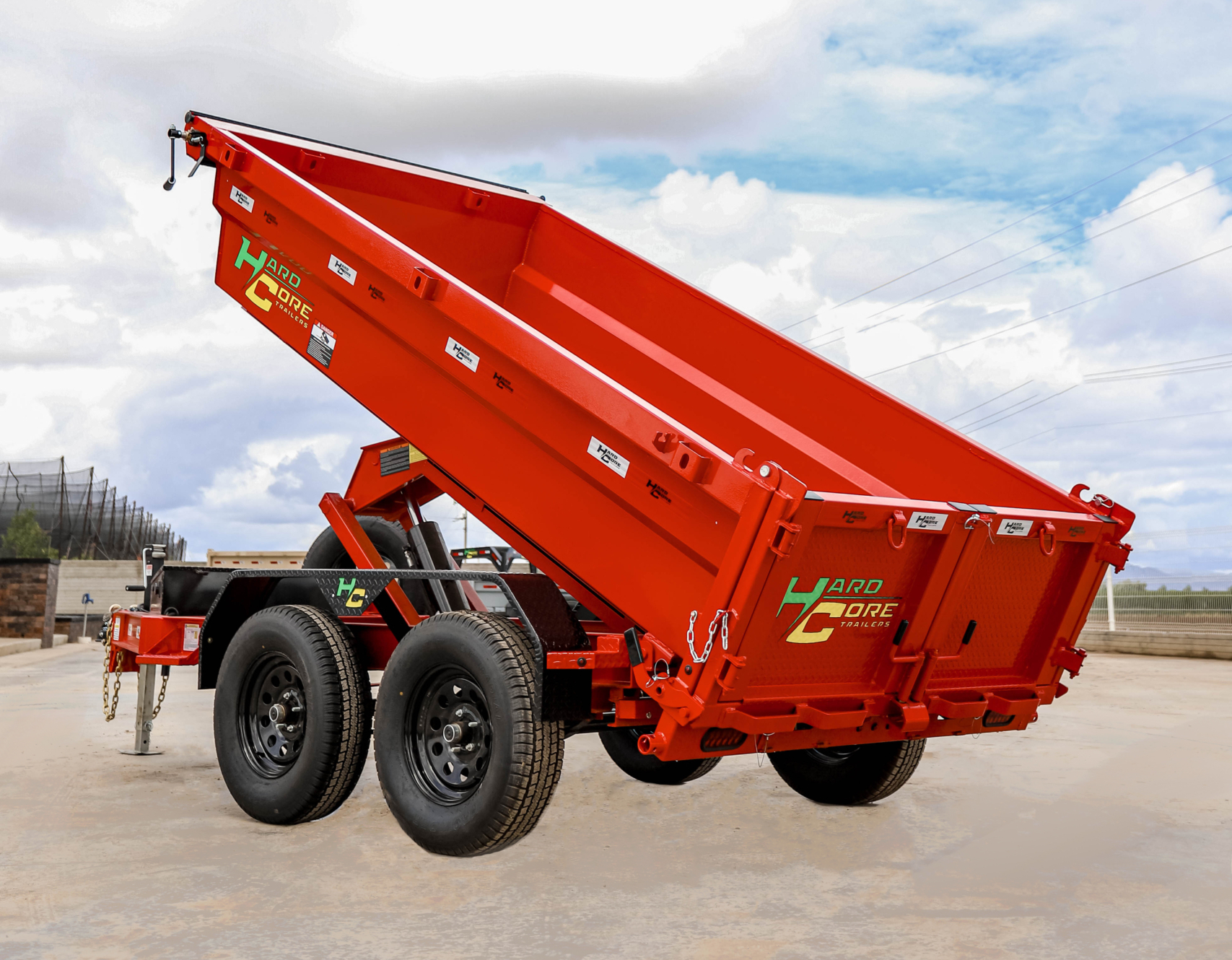

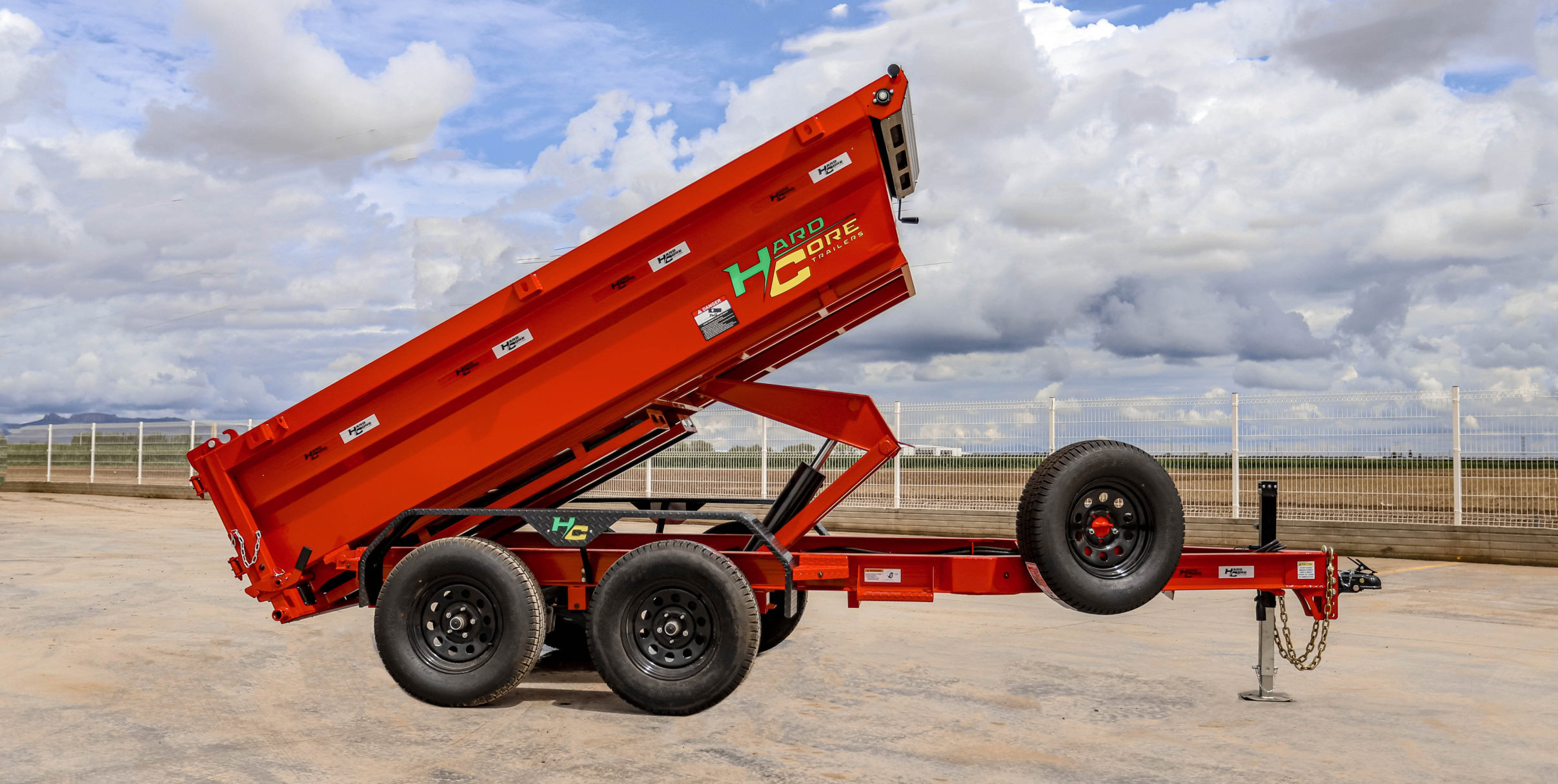

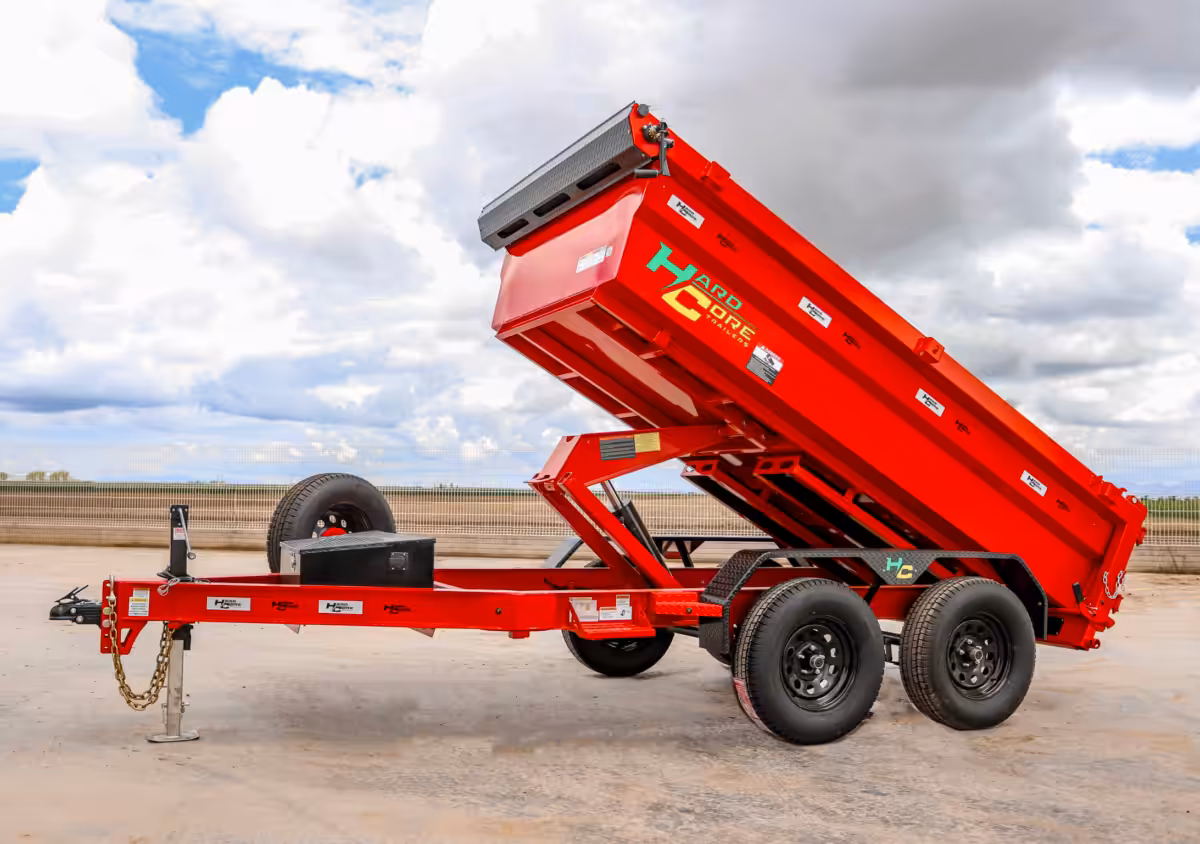

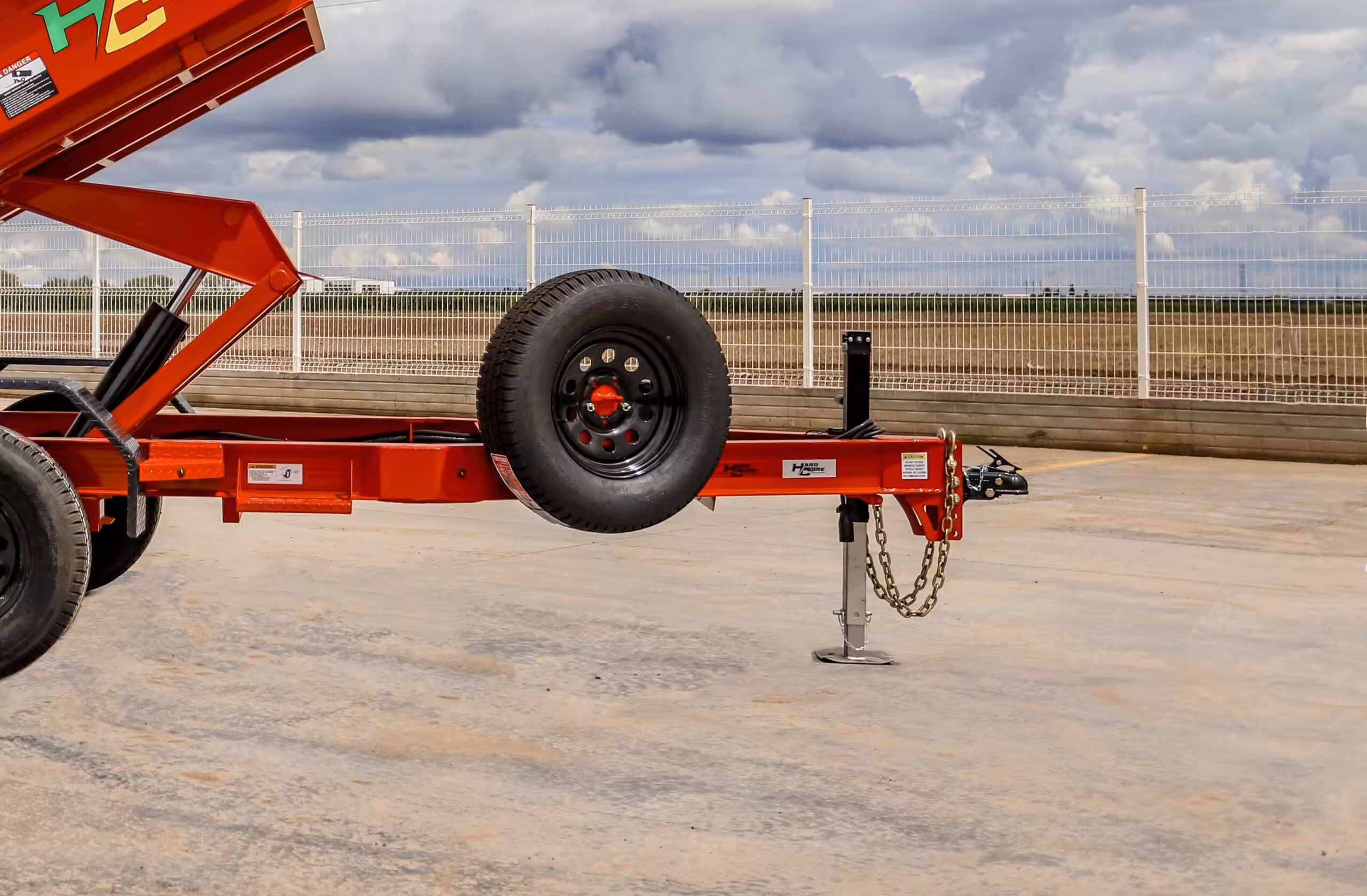

The XT5 – 68″ LowRider Bumper Pull Dump Trailer, is the most compact member of the HARDCORE lineup. This 5′ x 10′ trailer may be small, but it’s built tough—engineered with the same rugged durability as our larger models. Compact yet powerful, the XT5 is perfect for jobs that demand relentless performance and efficiency in a smaller footprint.

Whether you’re hauling in tight urban spaces or need a nimble trailer that’s easy to maneuver, the XT5 delivers unmatched versatility. Built with high-strength steel and a robust hydraulic system, it’s tough enough to handle whatever the day throws at it. From landscaping projects to light construction work, this trailer proves that good things come in small packages.

Designed for landscapers, contractors, and DIYers who need reliability without compromise, the XT5 makes load dumping quick and effortless. With its compact design and easy towing, it’s the perfect solution when you need HARDCORE performance in a smaller size.

At HARDCORE Trailers, we believe every job deserves the best tools—no matter the scale. The XT5 LowRider Dump Trailer is your dependable partner for smaller hauls that still demand big results.

Fast Facts

XT5 – 68″ LOWRIDER BP DUMP TRAILER Spec Sheet

Dimensions

  • Length10'
  • Width68"
  • Deck Height24"

Finish

  • TypePowder Coat
  • PreparationSandblast
  • Stock ColourBlack

Weight Ratings

  • GVWR7,000 / 10,400 lbs
  • GAWR3,500 / 5,200 lbs
  • Empty Weight3,020 / 3,130 lbs
  • Load Capacity3,870 / 7,270 lbs
  • Cargo Capacity4.05 yd³

Warranty

  • Trailer3 year(s)
  • AxleManufacturer year(s)
  • Paint1 year(s)

Tongue

  • Type6" (8.5 lb/ft) Ultra Strong I Beam frame
  • Tongue Length66.5"

Coupler

  • Coupler2-5/16" Adjustable hitch (6-Hole)

Jacks

  • Front Jacks7,000 lbs Spring Loaded Adjustable jack

Tool Boxes

  • Tool BoxLockable 4.4 Cu ft toolbox, charger, pump battery & remote control

Safety System

  • Safety Chains2
  • Breakaway SystemSafety breakaway system w/cable
  • Reflective TapeDOT safety tape

Frame

  • Main Frame6" Ultra strong I Beam
  • Cross Member3" x 3" 7GA SQ Tube
  • Fenders14 ga with 11 ga reinforcements
  • RampsHD QuickSlide Ramps 5'8"

Spare Mount

  • Spare Tire MountYes

Dump Bed

  • Inside Width73"
  • Side Height22" fully formed sides, 12-ga top rail measuring 2.75" x 4.25""
  • Flooring11 ga smooth plate
  • Stake Pockets8
  • D-Rings4 - 5/8" ubsude 2 - 1/2" outside

Rear Gate

  • Gate3-way Adjustable Spreader Gate
  • Latching SystemCoreLatch locking system

Lift System

  • PowerDeep cycle Battery
  • PumpKTI 12V dual action hydraulic pump
  • ControllerHand held remote with 15 foot cord.
  • LiftHeavy Duty hydraulic scissor lift
  • Cylinder5" x 16" Cylinder
  • Tilt Angle45 °

Tarp

  • Tarp Kit68" wide tarp with a crank roller (optional)

Tires

  • SizeST225/75R15 LRE Tires
  • Ply8
  • Rating2,830
  • Rims15" 5-Hole Wheels (3.5 K) / 15" 6-Hole Wheels (5.2K)
  • Bolt Pattern5X4.5 / 6X5.5

Suspension

  • Axle TypeTandem axles includes electric brakes
  • Axles3.5K / 5.2K
  • Rating3,500 / 5,200
  • BrakesElectric

Wiring

  • Front Plug7 pin
  • Frame WiringAll weather wiring & harness

Battery & Charging

  • BatteryDeep Cycle
  • Charging System5A 12v

Lighting

  • Side MarkersLights Full DOT approved LED sealed lights
  • Rear LightsLED markers DOT Approved
