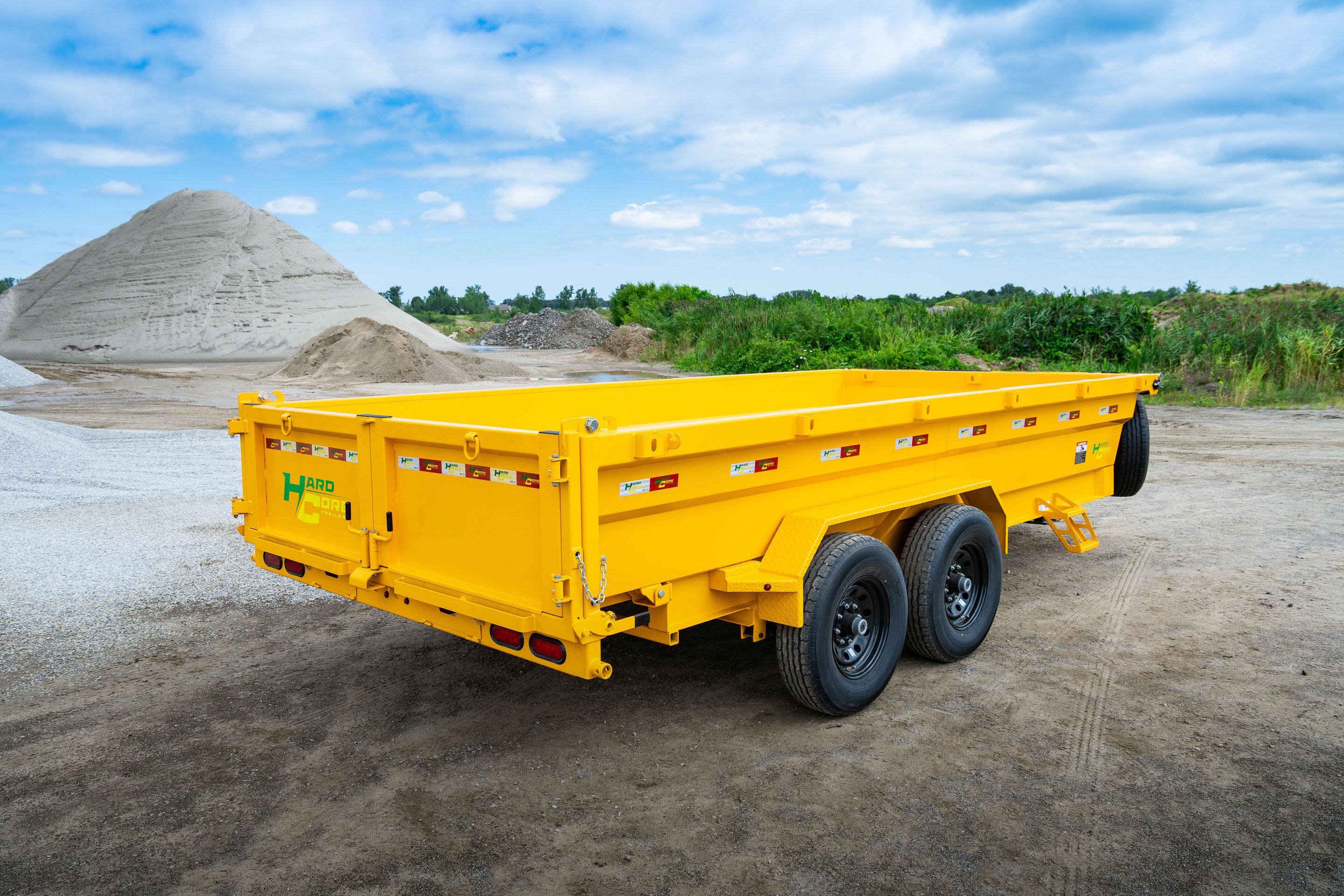

XT 7 Bumper Pull Series Trailer

XT7 Bumper Pull Series: Tough, Versatile, and Ready for Anything

Introducing the XT7 Bumper Pull Series, your all-purpose hauler that’s just as effective on city streets as it is on rugged job sites. With the muscle to handle everything from landscaping debris to heavy construction materials, this trailer is built to tackle any job.

The XT7 Bumper Pull Series design makes it easy to hitch up and hit the road, whether you’re driving a work truck or your daily driver.

This trailer isn’t just built to perform—it’s built to excel. Equipped with a reinforced tongue and frame, the XT7 Bumper Pull Series is ready to take on the heaviest loads without hesitation. The adjustable coupler ensures a perfect fit with your vehicle, and the radial tires guarantee a smooth ride, even on the roughest terrain.

Whether you’re hauling tools, equipment, or materials, the XT7 Series Bumper Pull Series is your reliable partner for any job, big or small. Get ready to take on the day with a trailer that’s as tough and versatile as you are.

Fast Facts

Trailer style:
XT 7 Bumper Pull Series Spec Sheet

Trailer Specs

Dimensions

  • Length12', 14', 16'
  • Width91"
  • Deck Height27"

Finish

  • TypePowder Coat
  • PreparationSandblasting
  • Default ColourBlack

Weight Ratings

  • GVWR14,000 lbs
  • Empty Weight4,000, 4,950, 5,580 lbs
  • Load Capacity6.55yd3, 7.65yd3. 8.7yd3 lbs

Warranty

  • Trailer3 year(s)
  • AxleManufacturer 3 year(s)
  • Paint1 year(s)

Tongue

Tongue

  • Type8"x 10lbs. Ultra Stong I Beam frame

Coupler

  • Coupler2-5/16" adjustable, 6 hole

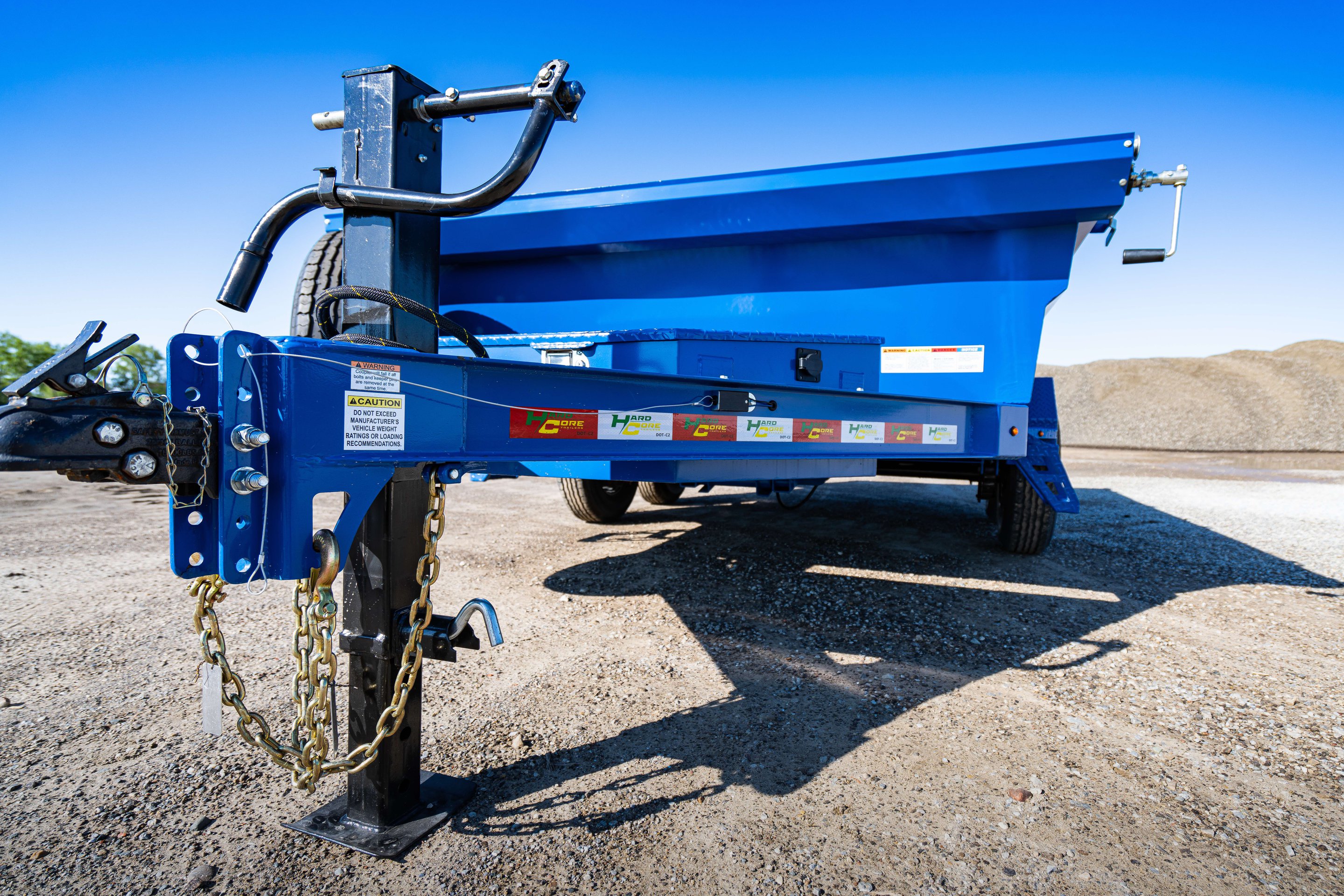

Jacks

  • Front Jacks7,000, 10,000 or 12,000 lbs spring-loaded adjustable

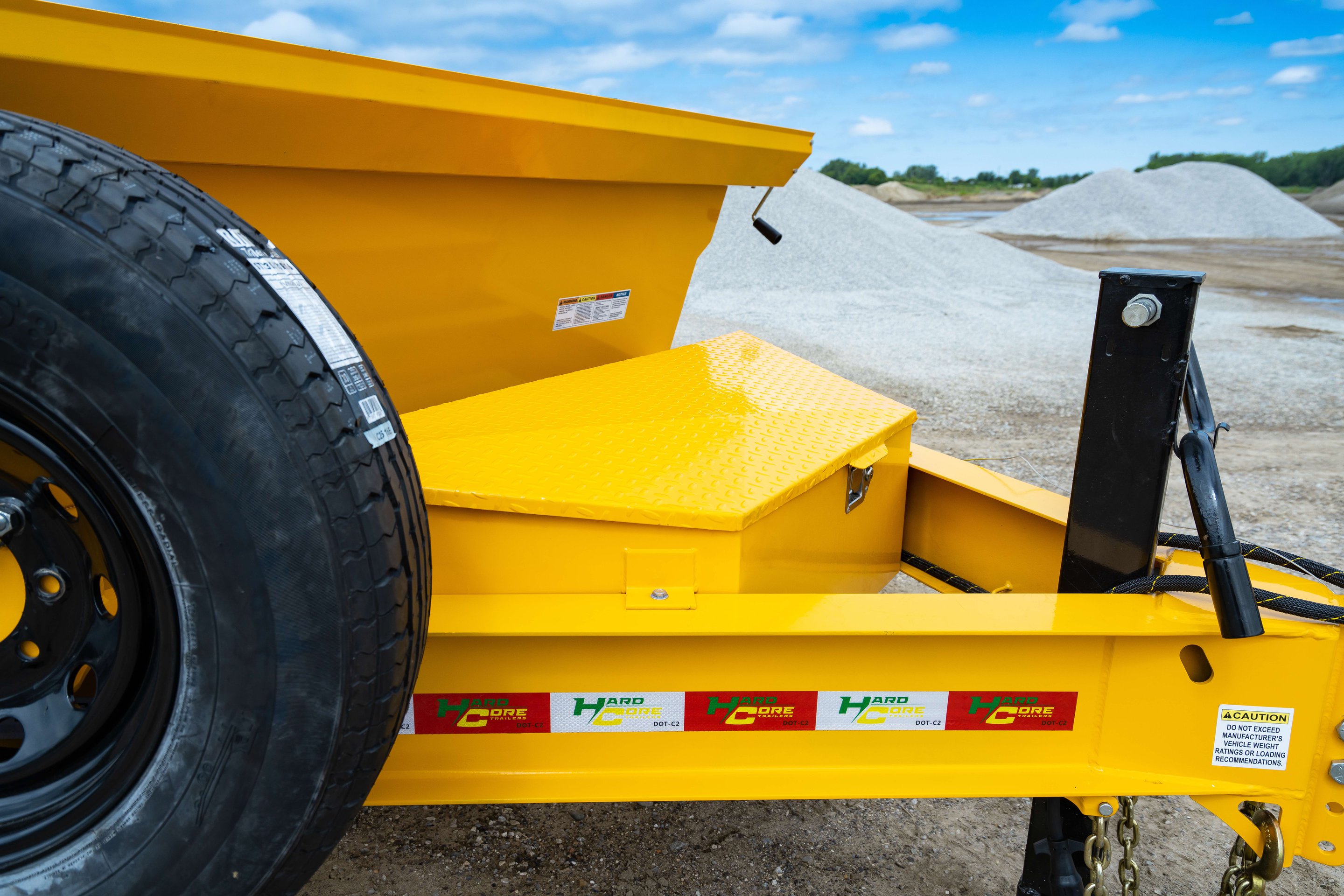

Tool Boxes

  • Tool Box Lockable 5.48cu ft toolbox, battery, charger, pump, & remote control

Safety System

  • Safety Chains5/16" X 35" LG GRD 70
  • Breakaway SystemSafety breakaway system w/cable
  • Reflective TapeDOT-approved safety tape

Dump Bed

Dump Bed

  • Inside Width91"
  • Side Height24" or 48" fully formed sides, 10-ga top rail measuring 2.75" x 4.25" "
  • Flooring7 ga smooth plateplate flooring
  • Fenders14 ga with 11 ga reinforcements
  • Stake Pockets17 - 1-5/8" X 3-1/2 X 3"
  • Cross Member3" channel bed with 16" on-center cross-members, 4X4 tube
  • D-Rings4 - 5/8" inside 6 - 1/2" outside

Tilt Frame

  • Type3"x4.1 lbs channel

Cargo

  • Cargo Capacity6.55yd3, 7.65yd3, 8.74yd3

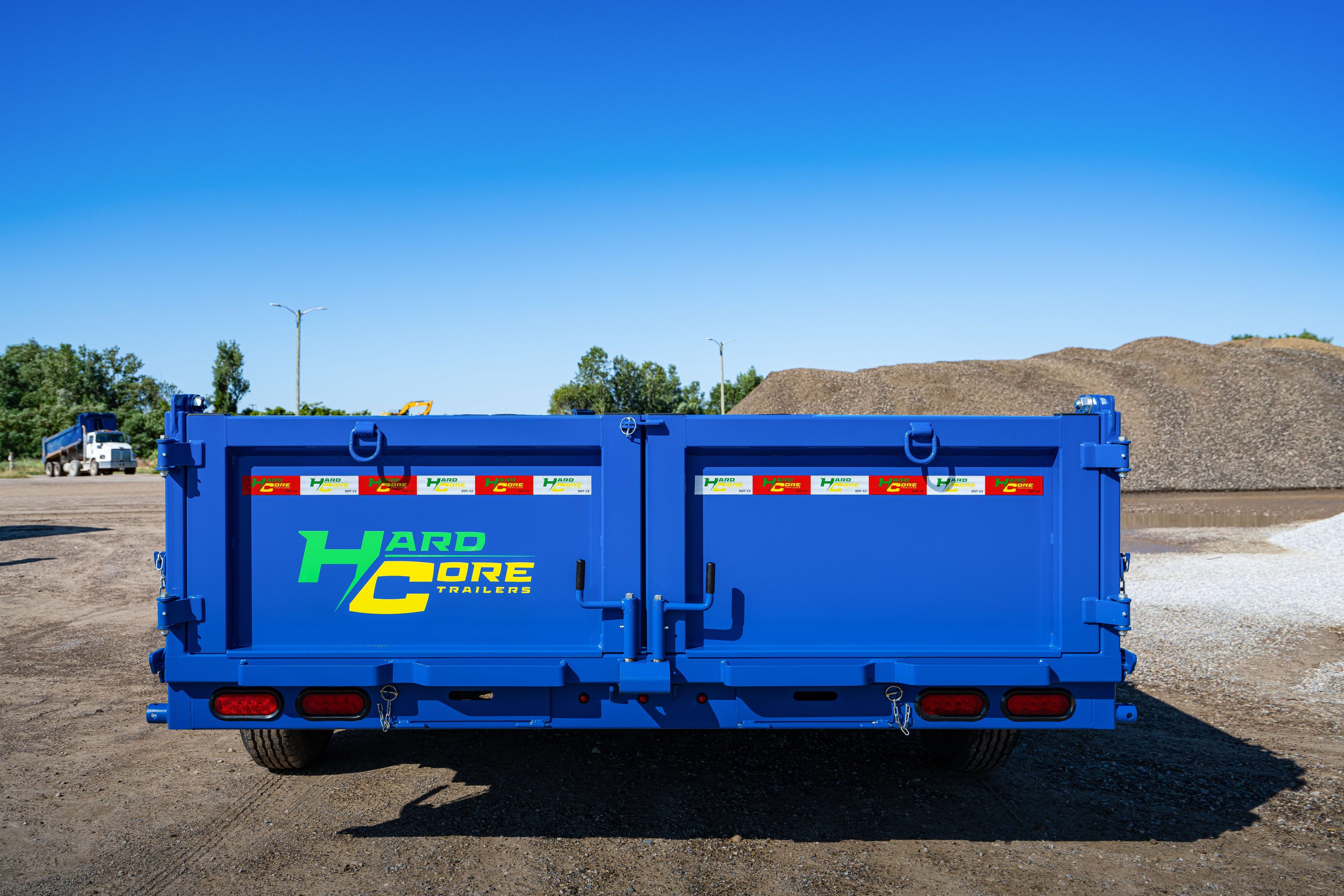

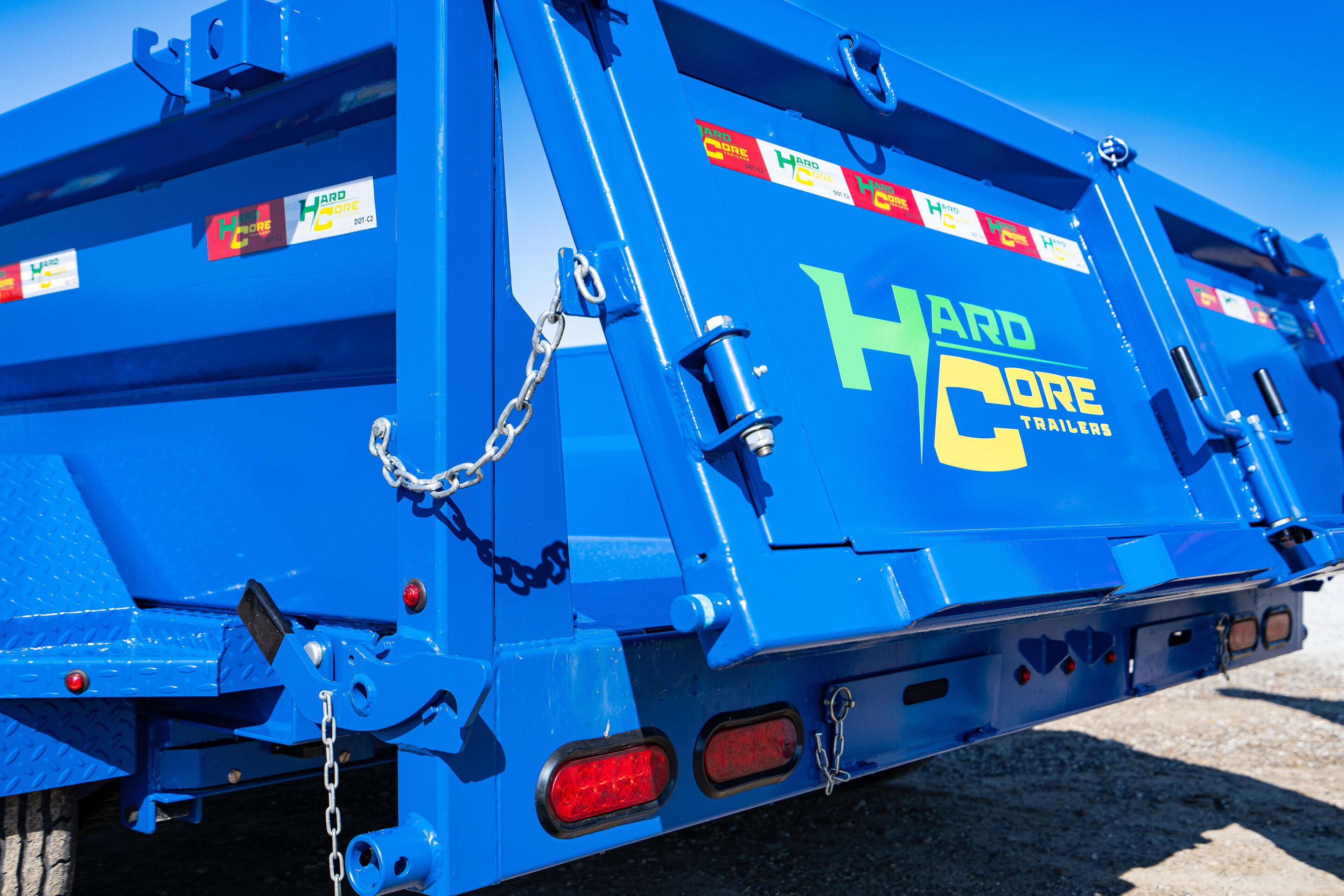

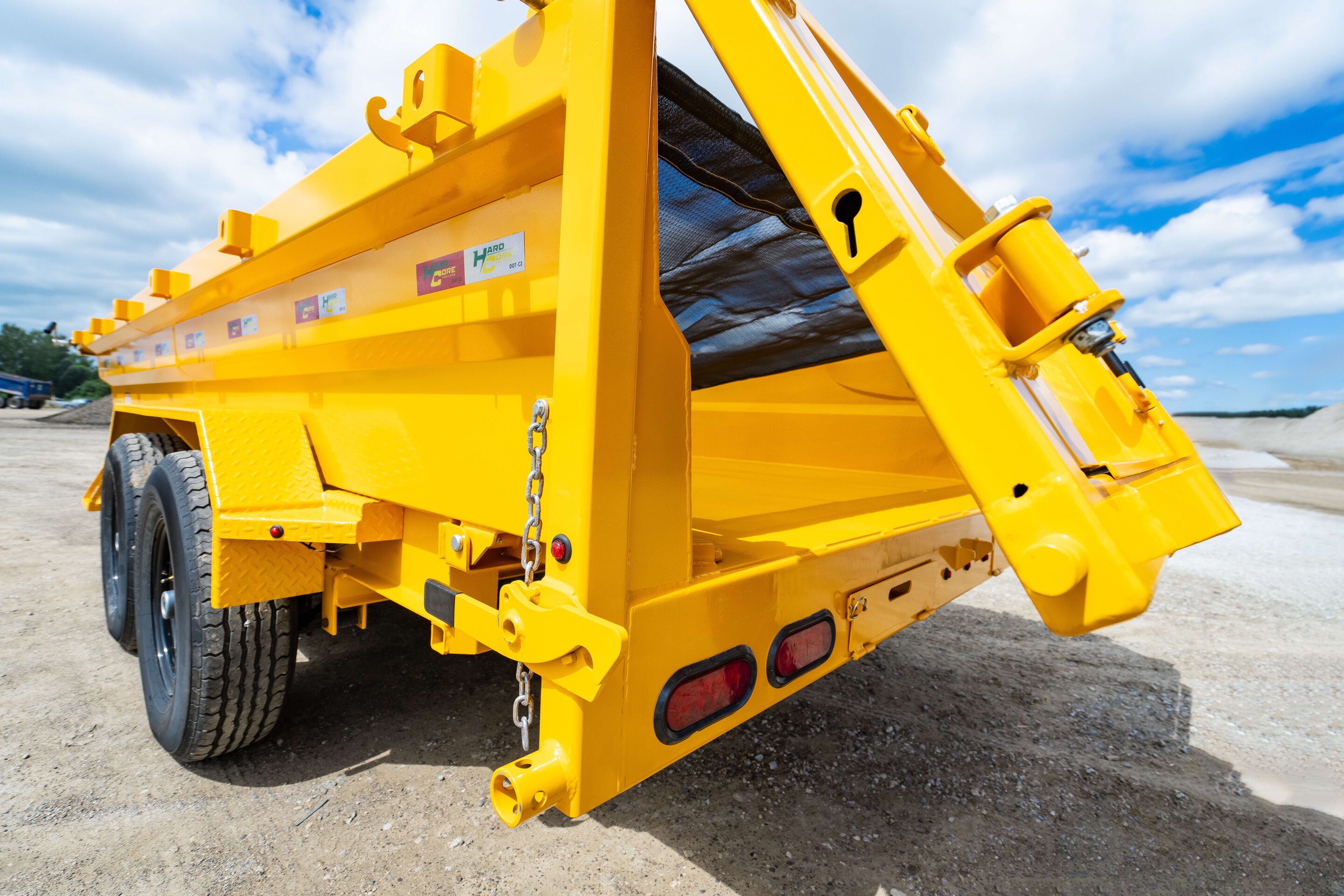

Rear Gate

  • GateAdjustable rear spreader gate & barn doors
  • Latching SystemCoreLatch locking system

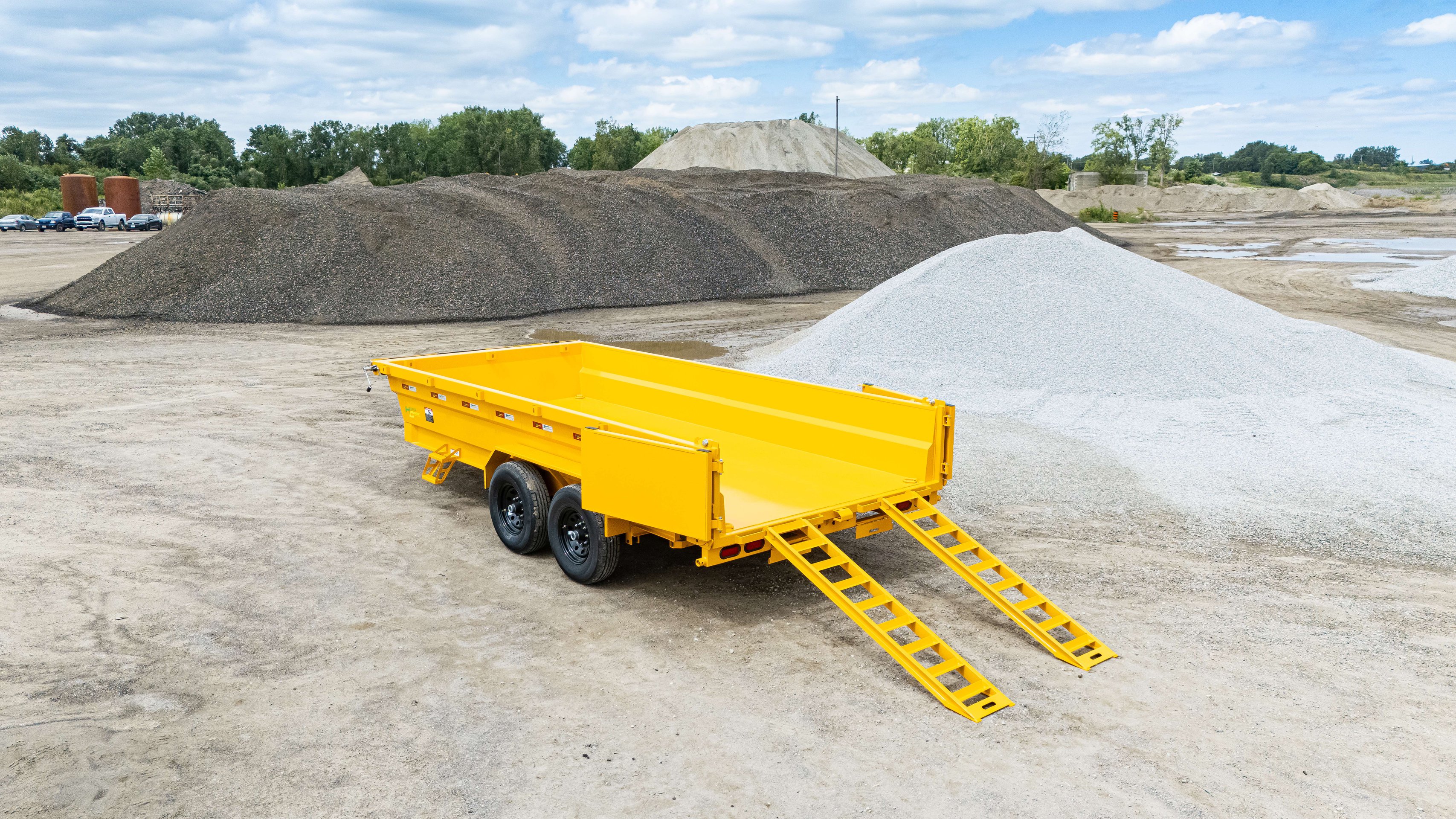

  • Ramps6' 5" MegaStrength

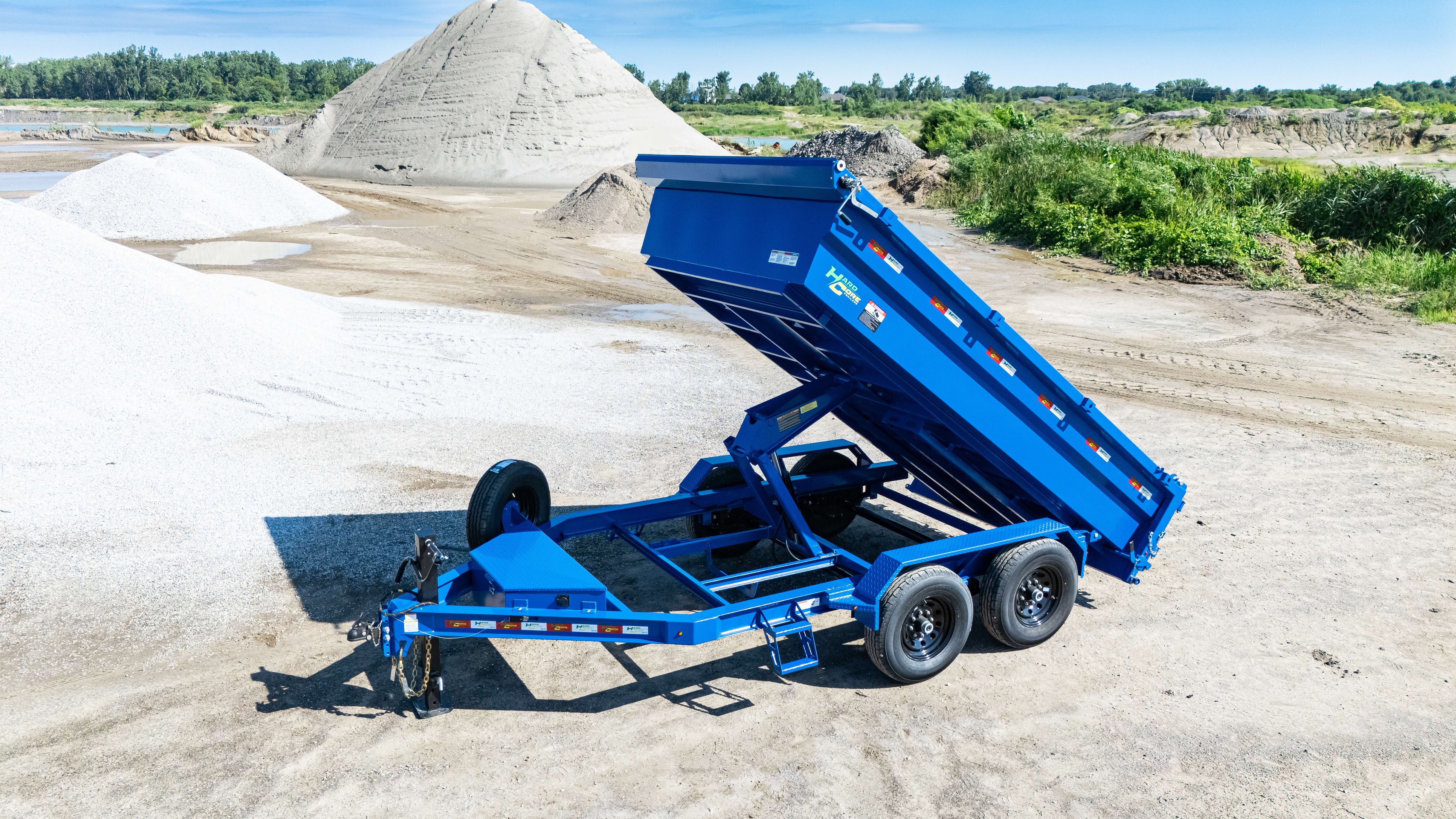

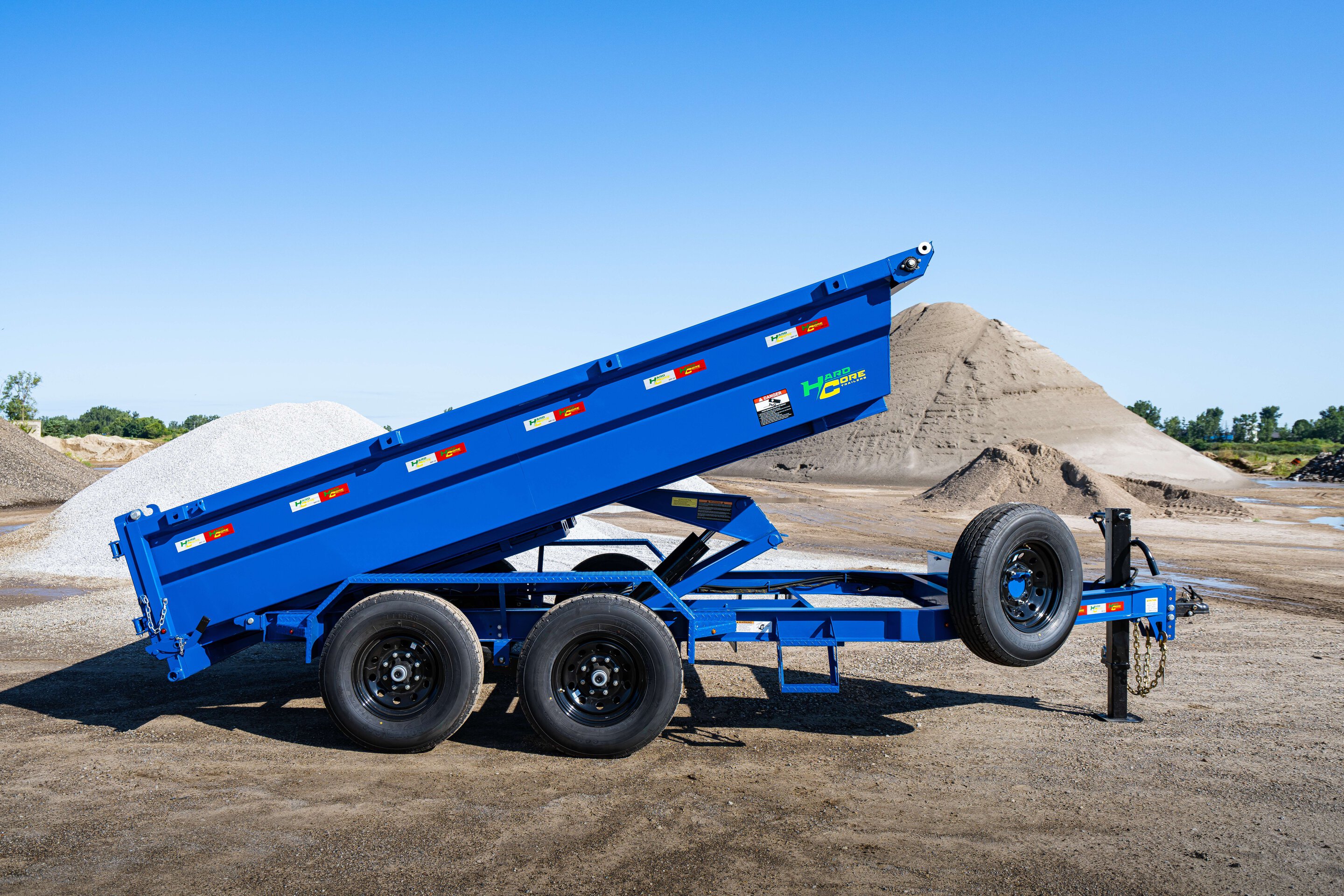

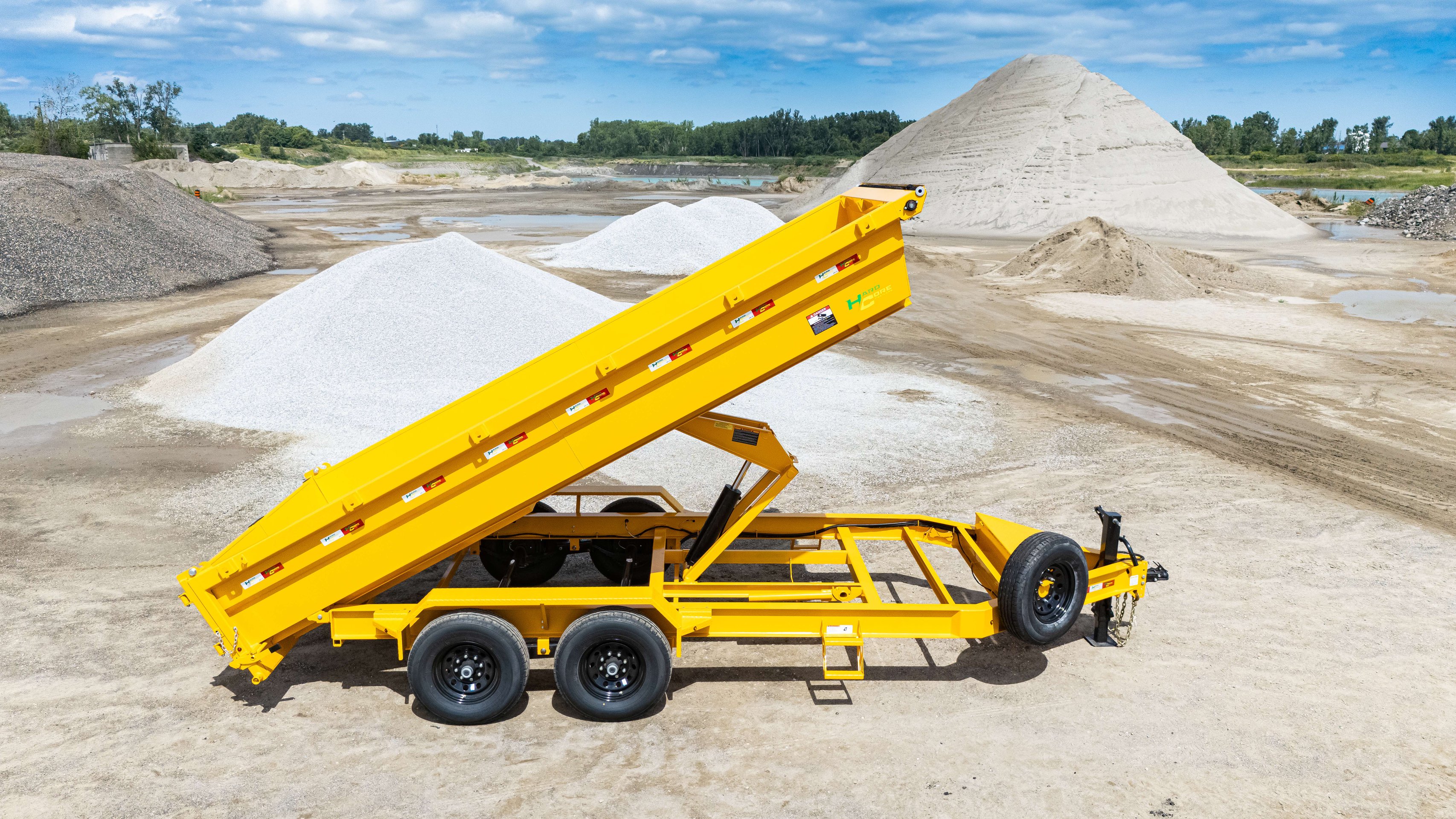

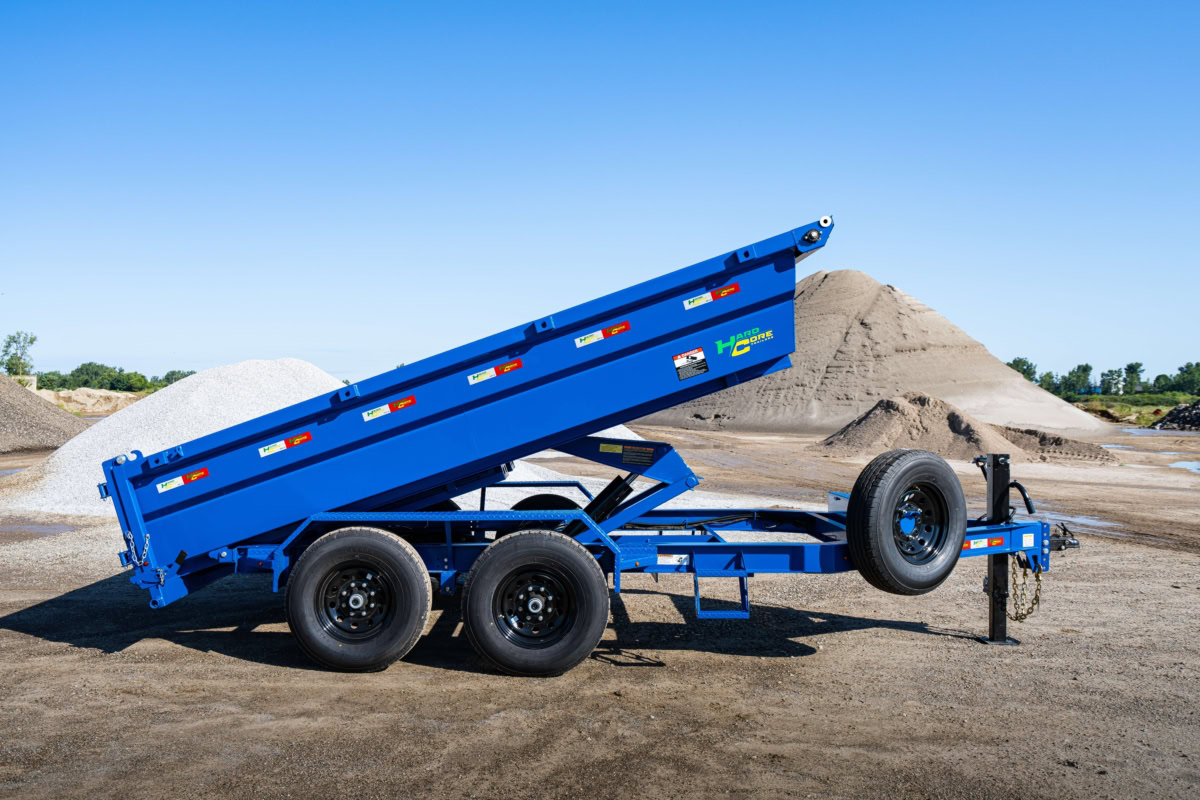

Lift System

  • PowerDeep cycle battery
  • PumpKIT 12V Hyraulic Punp
  • Controller14' cable
  • LiftHeavy Duty hydraulic
  • Cylinder5.5" X 26.25
  • Tilt Angle45"

Tarp

  • Tarp Kit95" extra wide crank roller (Optional)

Running Gear

Tires

  • SizeST235/80R16LRE (7 K) or ST235/85R16LRE (8)
  • Ply10
  • Rating3,520
  • Rims16" 8-Hole wheels (7 K )
  • Bolt Pattern8 X 6.5

Suspension

  • Axle TypeTandem axles includes electric brakes
  • Axles7K or 8K
  • BrakesElectric

Electrical & Lighting

Wiring

  • Front Plug7 pin
  • Frame WiringAll weather wiring & harness

Battery & Charging

  • BatteryDeep cycle
  • Charging System5A12v

Lighting

  • Side MarkersDOT-Approved LED

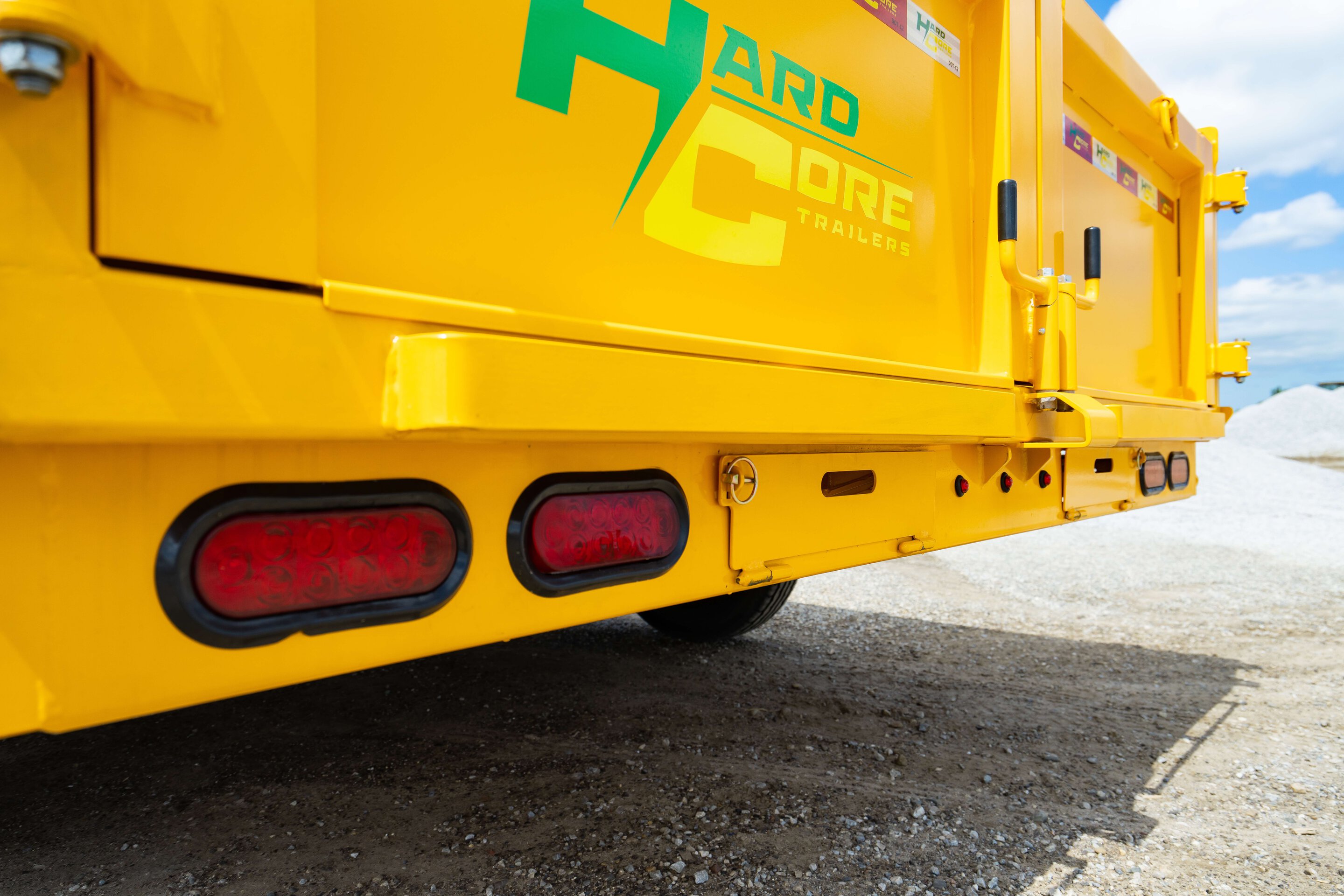

  • Rear LightsDOT-Approved LED

FAQs for Dump Trailers

In the market for a dump trailer? Here are some of the most common questions we hear, along with answers that can help you in making the right purchase.
Have more questions? Contact us anytime.

Q: How do I know what size dump trailer I need?
A: The size of dump trailer you need depends on the type and volume of material you plan to haul. Common sizes for dump trailers range from 5′ x 10′ for smaller jobs to 7′ x 14′ or larger for heavy-duty tasks. Consider the capacity, dimensions, and weight limits that best suit your work.

Q: Should I choose a bumper pull or gooseneck dump trailer?
A: Bumper pull trailers are easier to maneuver and are ideal for lighter loads and tighter spaces. Gooseneck trailers offer better stability and higher weight capacity, making them suitable for heavy-duty applications.

Q: What materials can a dump trailer handle?
A: Dump trailers are designed to handle a wide range of materials, including gravel, dirt, sand, mulch, debris, and construction materials. Ensure your dump trailer has the appropriate capacity and durability for your specific needs.

Q: How do I know if my vehicle can tow a dump trailer?
A: Check your vehicle’s towing capacity in the owner’s manual. Compare it with the dump trailer’s Gross Vehicle Weight Rating (GVWR), which includes the trailer’s weight and load. Your vehicle should be able to safely tow the full GVWR.

Q: What type of hydraulic system is best for a dump trailer?
A: Most dump trailers use either scissor lift or direct push hydraulic systems. Scissor lifts provide more stability and are better for heavier loads, while direct push systems are more straightforward and cost-effective for lighter loads.

Q: How do I maintain my dump trailer?
A: Regular maintenance includes checking the hydraulic system, inspecting the tires, lubricating moving parts, and ensuring all lights and brakes function properly. You should also clean the trailer bed after use to prevent material build-up and corrosion.

Q: What are the benefits of high-side vs. low-side dump trailers?
A: High-side dump trailers offer increased capacity, making them ideal for hauling bulkier materials. Low-side trailers are easier to load and unload, especially with smaller equipment like wheelbarrows or skid steers.

Q: How do I ensure I’m getting a quality dump trailer?
A: Look for dump trailers made with high-quality materials like reinforced steel frames and durable hydraulic systems. Read reviews, ask for recommendations, and buy from reputable manufacturers who stand behind their products with warranties and customer support.
