EDX – END DUMP EXTREME TRAILER

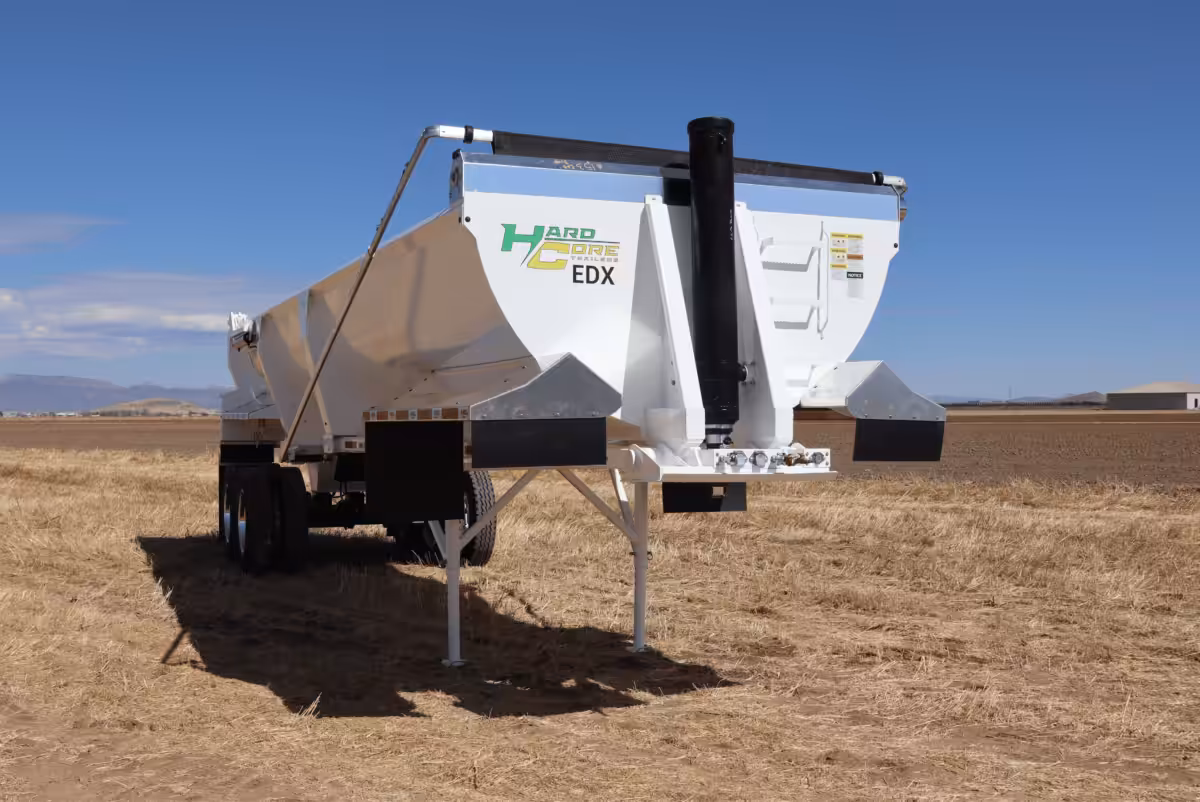

  • EDX label removed

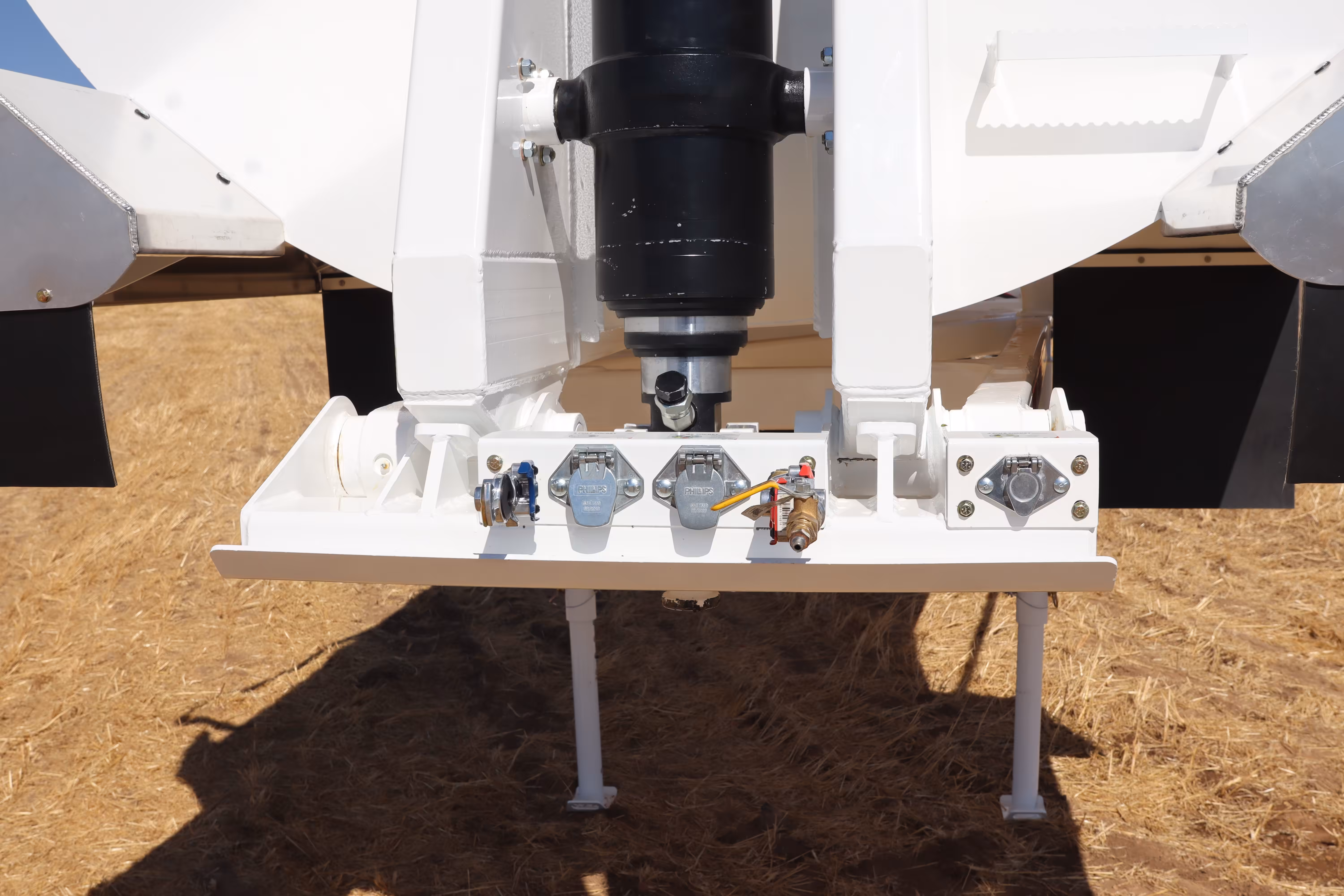

  • EDX controls

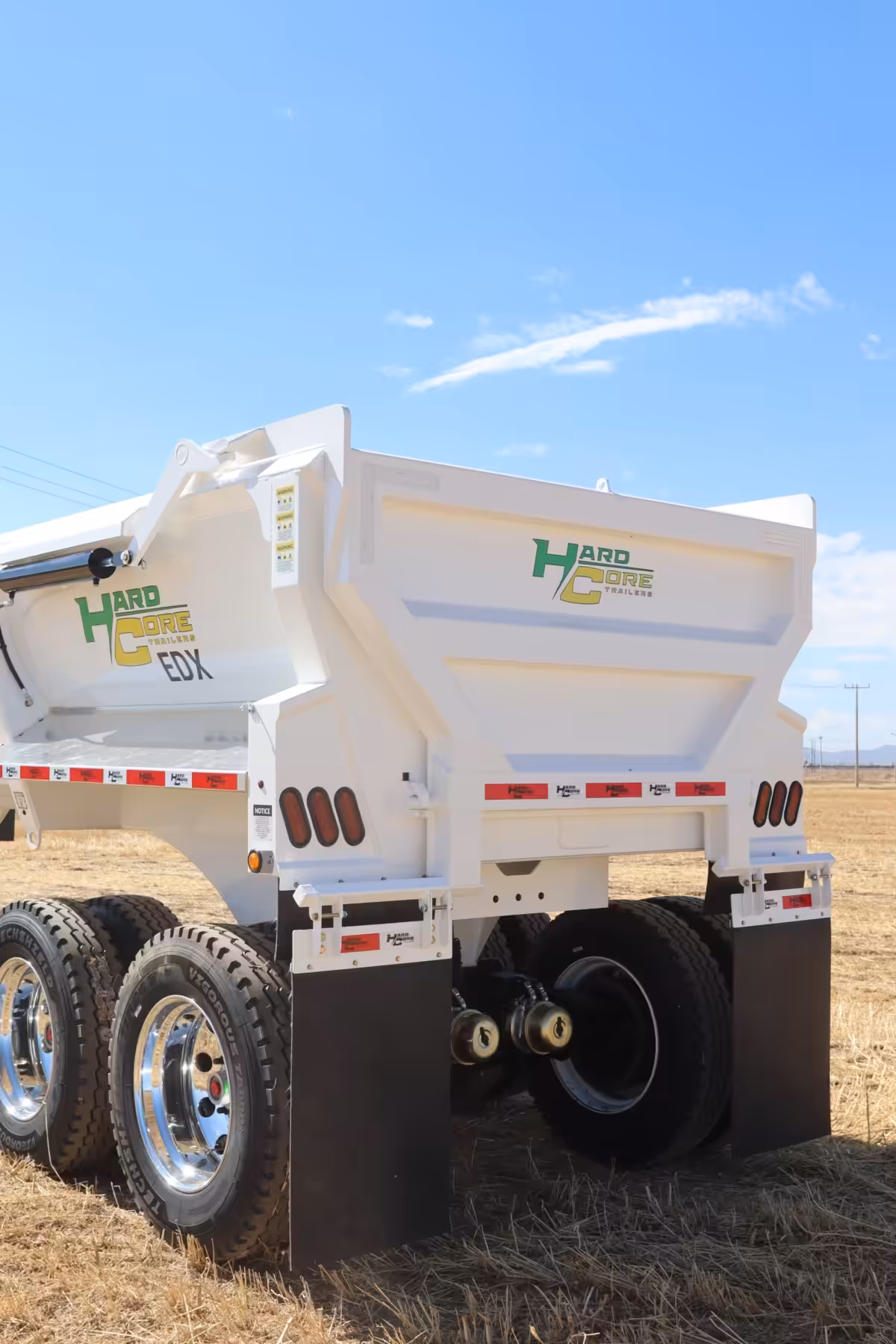

  • EDX back

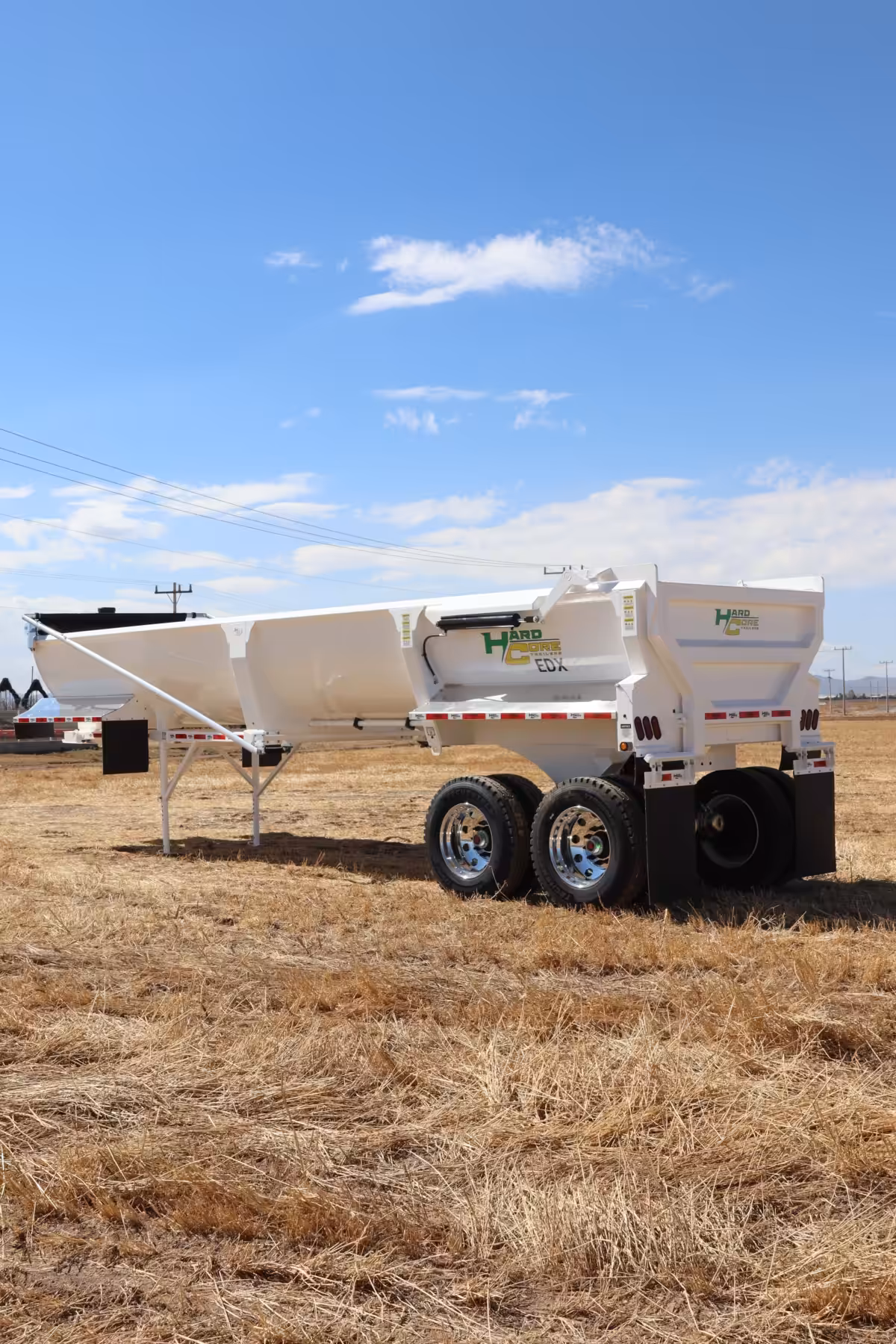

  • EDX side

The EDX End Dump Extreme Semi-Trailer is engineered for high-capacity hauling and controlled, efficient dumping. Built for aggregate producers, excavation crews, and large-scale construction operations, this frameless end dump trailer is designed to maximize legal payload while maintaining structural strength.

Its high-strength steel construction and reinforced hoist system deliver smooth, reliable lift performance load after load. The frameless body design reduces overall trailer weight, allowing operators to move more material per trip—ideal for gravel, sand, rock, demolition debris, and bulk construction materials.

From quarries to demanding job sites, the EDX End Dump Extreme is built for serious work. Designed for durability, stability, and consistent performance, it delivers the HARDCORE strength operators rely on day after day.

Fast Facts

EDX – END DUMP EXTREME TRAILER Spec Sheet

Dimensions

  • Length28' / 32' / 34' 36' / 38'
  • Width102"
  • Sides45"

Finish

  • TypePowder Coat
  • PreparationSandblast
  • Stock ColorBlack

Weight Ratings

  • Empty Weight14,100 lbs / 14,600 lbs / 14,850 lbs / 15,100 lbs / 15,300 lbs
  • Cargo Capacity23 / 26 / 27.5 / 29 / 30.7 yd³

Warranty

  • Trailer3 year(s) limited
  • AxleManufacturer year(s)
  • Paint1 year(s)

Air & Hydraulic Systems

  • Hoist8" 5 stage cylinder
  • Gate Cylinders4" air operated cylinders
  • Gate ValveCab controlled or manual

Tub & Structure

  • Tub & Structure1/4" AR400 plate (Optional AR450 or AR500. LW 3/16 tub option)
  • Tub Rear 8'5/16" steel
  • Nose & Gate3/16 AR400 plate or AR450 or AR500 (1/4" optional)
  • TailgateAir-operated hi-lift, integrated mud flaps
  • FendersSteel or aluminum, bolt-on (front and rear)
  • Landing GearDrop down adjustable legs
  • LadderFront: driver side
  • Tarp (Option)Manual or electric flip

Side

  • FendersSteel or aluminum, bolt-on (front and rear)

Rear Tail

  • Straight DeckAir-operated hi-lift, integrated mud flaps

Tires

  • Size8-11RX 24.5
  • Wheels8-8.25 X 24.5 steel wheels

Suspension

  • Axle TypeH-900 single point suspension (Air-ride suspension option available)
  • Axles77.5" track axles
  • BrakesSensors on rear axle (ABS)
