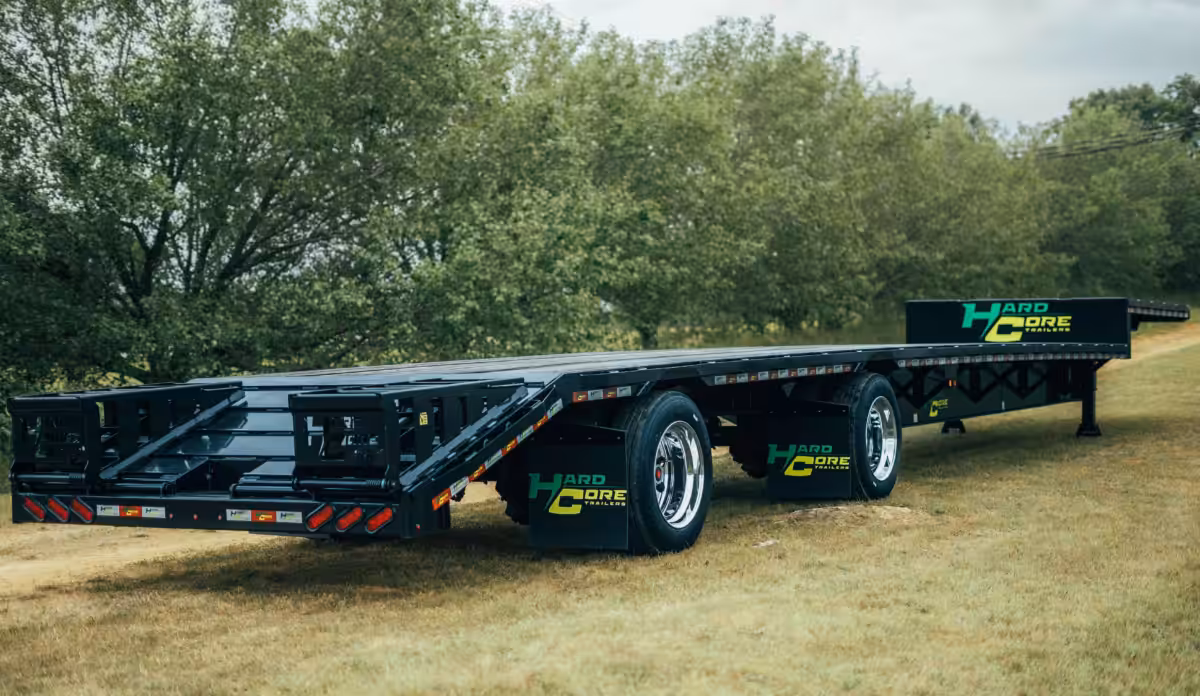

BTX – BEAVERTAIL SEMI TRAILER

The BTX BeaverTail Semi Trailer is built for the long haul—engineered to move heavy machinery, equipment, and bulk cargo with confidence. Designed for contractors, fleets, and operators who demand strength and reliability, the BTX combines rugged construction with proven performance for serious hauling power.

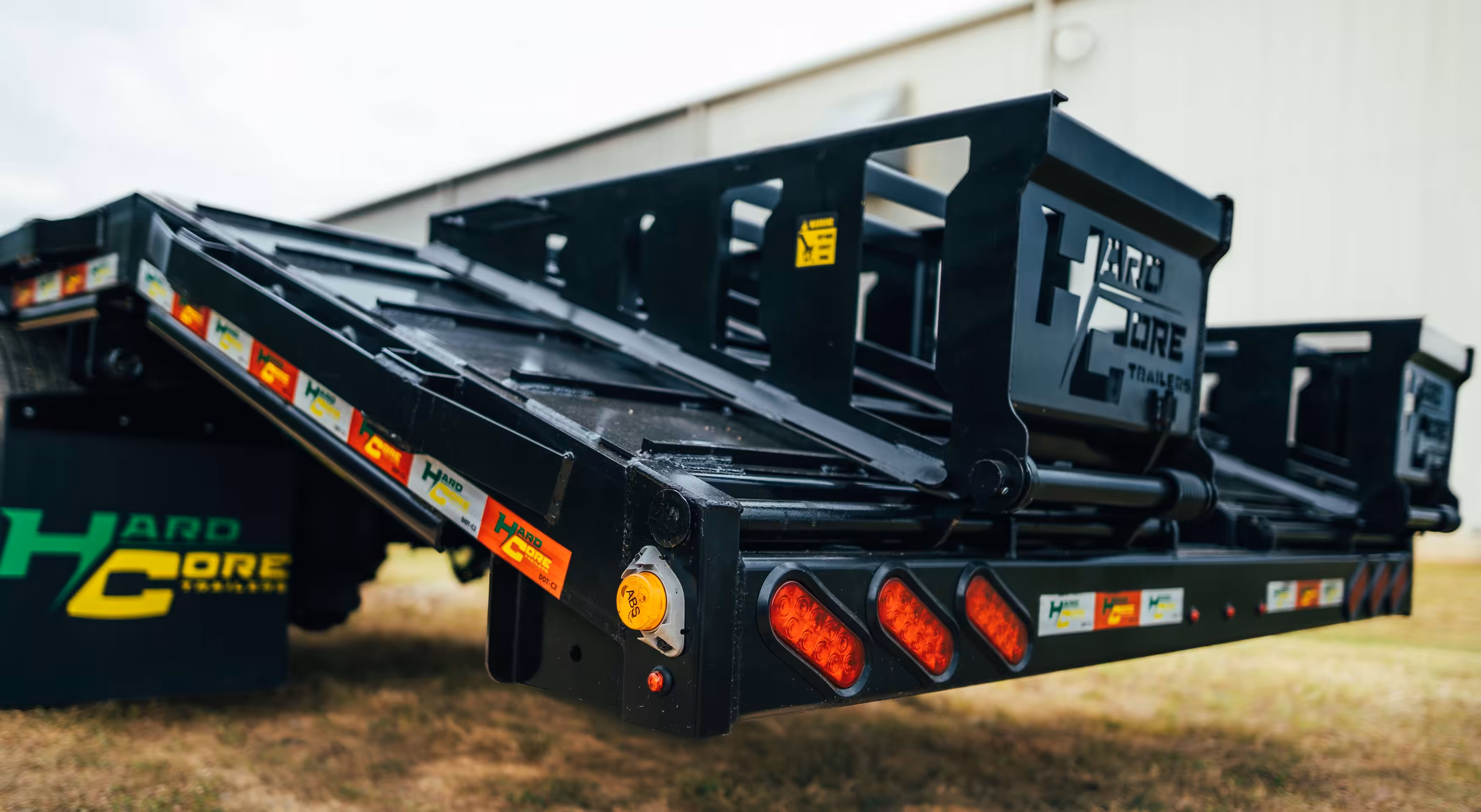

With its beavertail design and heavy-duty ramps, the BTX makes loading and unloading fast and efficient, even with oversized equipment. Its reinforced steel frame and advanced suspension system are built to handle demanding loads while delivering stability and control on every mile.

From job site to highway, the BTX BeaverTail Semi Trailer is more than a hauler—it’s a dependable partner built to keep your business moving. Tough, reliable, and purpose-built, it’s ready for operators who expect hardcore results on every run.

Fast Facts

Trailer style:
BTX – BEAVERTAIL SEMI TRAILER Spec Sheet

Dimensions

  • Length48' / 53'
  • Width102"
  • Upper Deck Length10' 6"
  • Lower Deck Length37' 6"
  • Upper Deck Height62"
  • Lower Deck Height41"

Finish

  • TypePowder Coat
  • PreparationSandblast
  • Stock ColourBlack

Weight Ratings

  • GVWR80,000 lbs
  • Empty Weight13,280 / 13,900 lbs

Frame

  • Main Beam27" High Tensile Steel
  • Cross Member4" Steel 1 Beam on 12" Centers
  • King Pin2" Holland set at 24""
  • WebGrade 80 High Tensile Steel
  • Front SkirtFormed Steel with Tapered Corners
  • Rear SkirtFormed Steel with Integral Stake Pockets

Deck

  • Flooring1 1/8" Apitong Hardwood
  • Winches12 - Winch Track Steel Slide Driver Side

Side

  • Rub Rail3/8" X 2 1/2" Steel
  • Stake PocketsSteel, External Mount, 24" on center with double pipe spools

Side Rail

  • Side Rail6" Steel Channel

Lighting

  • Side MarkersDOT - approved LED Pin lights
  • Rear LightsLights Full DOT approved LED sealed lights
