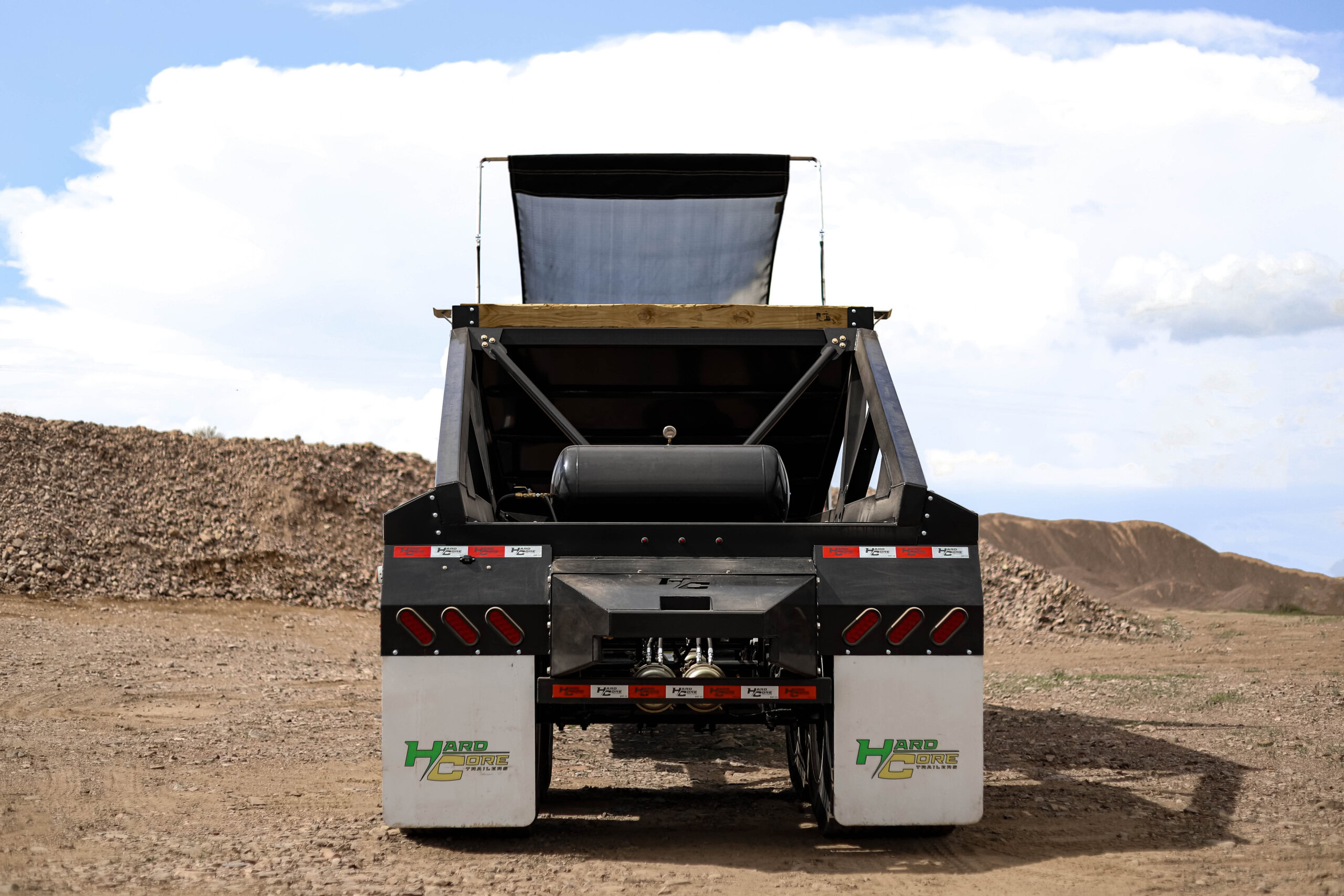

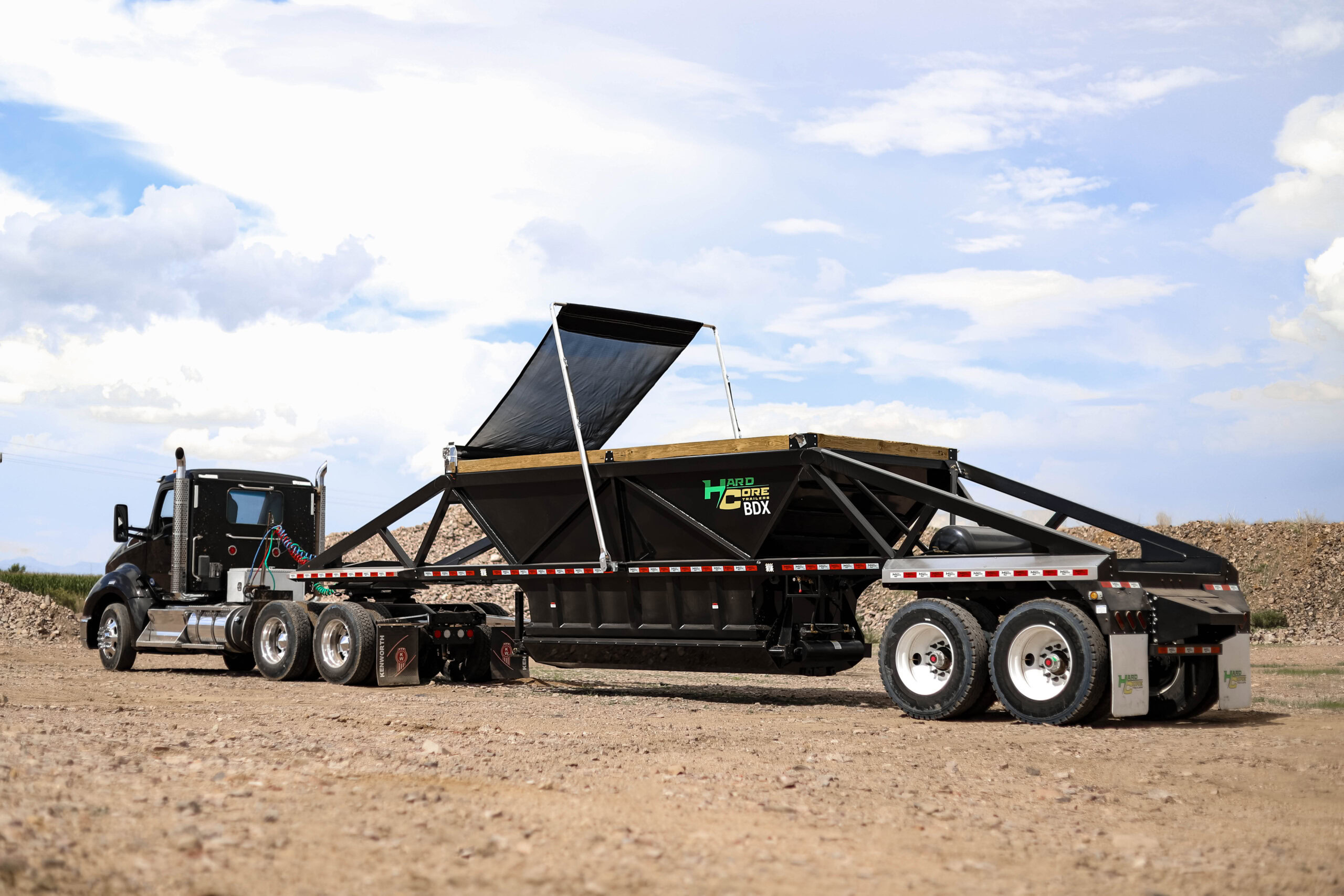

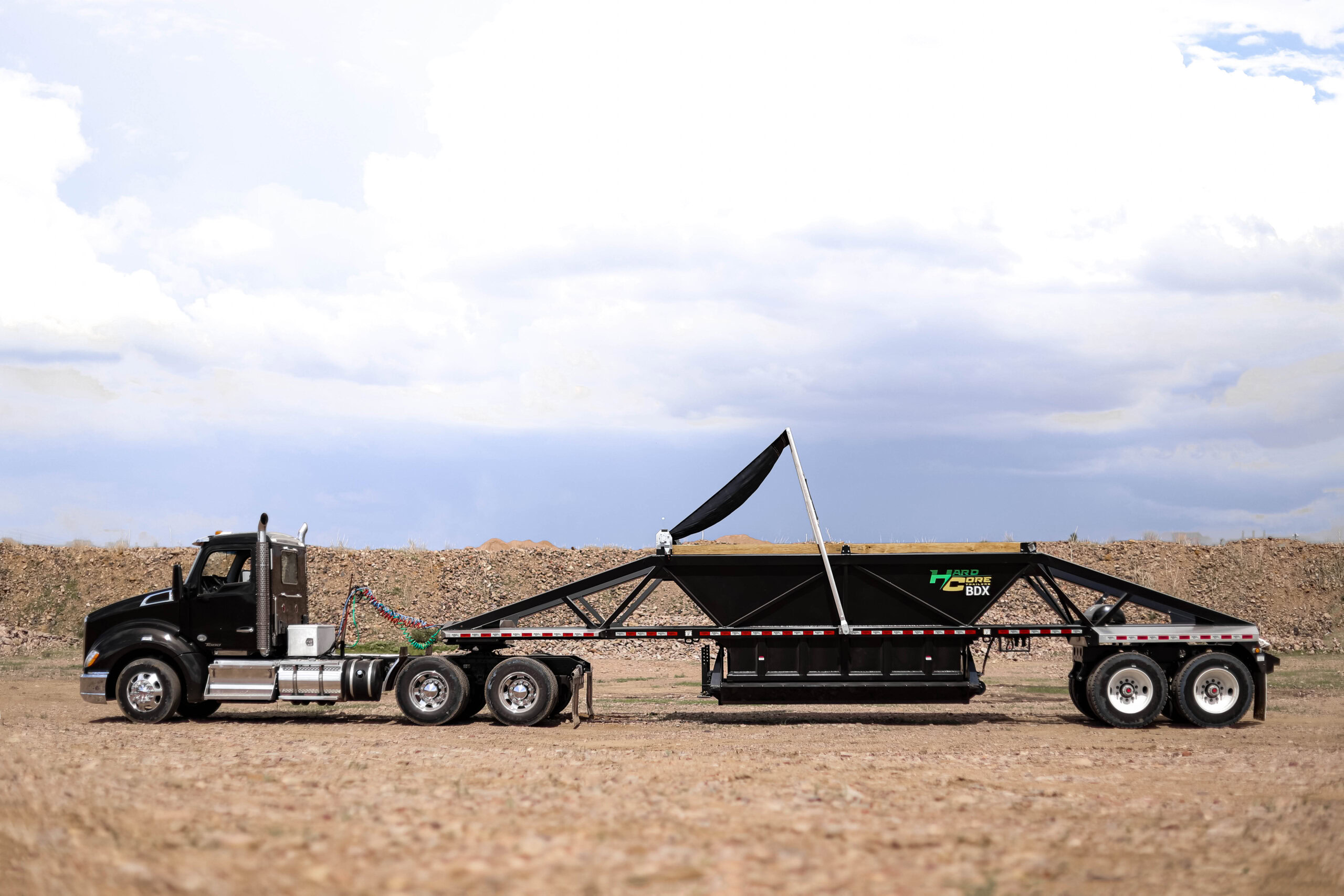

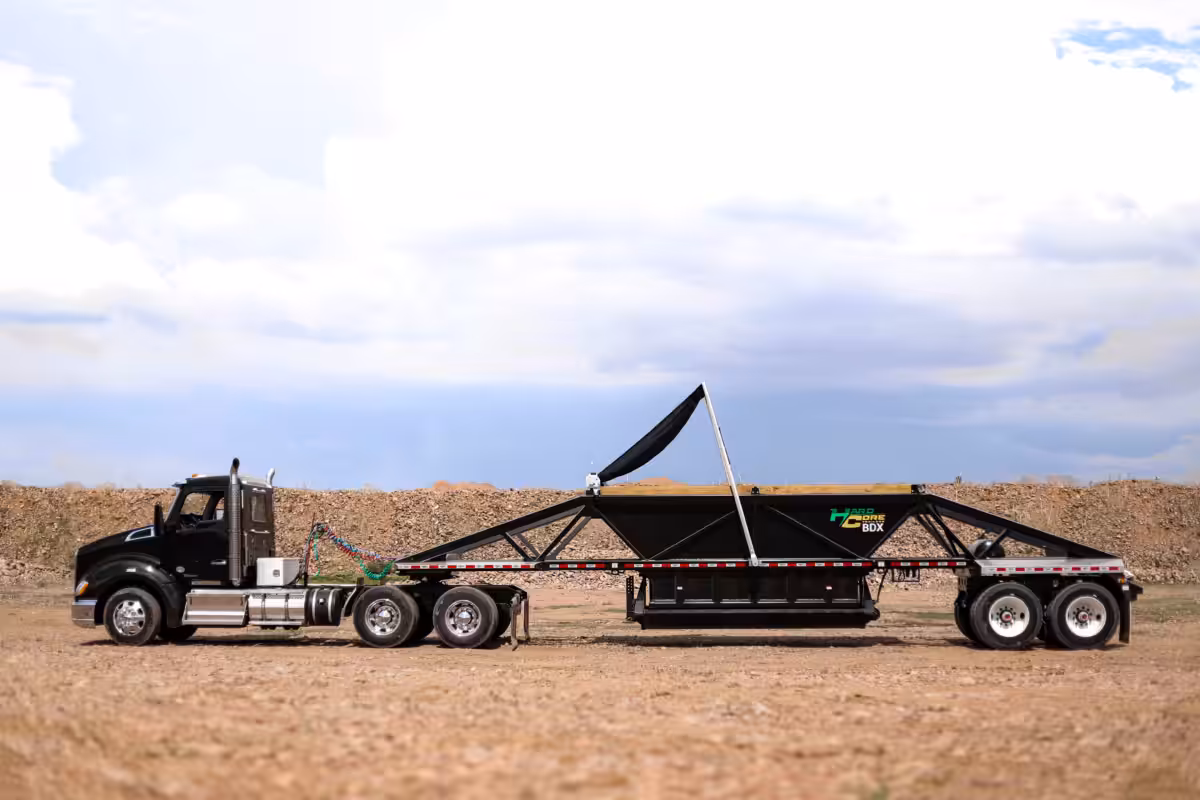

BDX – BELLY DUMP EXTREME SKE TRAILER

The BDX Belly Dump Extreme SKE Trailer is engineered for maximum efficiency, strength, and controlled unloading. Built for large-scale construction, aggregate hauling, and infrastructure projects, this belly dump trailer is designed to move high-volume loads with speed and precision.

With its rugged skeleton frame, the BDX Extreme SKE maximizes payload while minimizing weight, delivering better fuel efficiency and easier maneuverability on the road. Reinforced steel construction and optimized material flow ensure fast, even unloading—perfect for gravel, asphalt, sand, and other aggregates that demand accuracy.

From highways to heavy-duty job sites, the BDX Belly Dump Extreme SKE Trailer is a workhorse you can count on. Built tough for contractors, haulers, and crews who need reliability shift after shift, it delivers the hardcore performance to keep your projects moving forward.

Fast Facts

Model number(s):
BDX SKE
Trailer style:
BDX – BELLY DUMP EXTREME SKE TRAILER Spec Sheet

Dimensions

  • Length40'
  • Width96"
  • Height8'11"
  • Fifth WheelOscillating Plate
  • Air System2 - 8" OEM bore cylinders, 60-gallon reservoir, oil and water separator
  • Push/Pull BlockBolt On

Finish

  • TypePowder coat
  • PreparationSandblast
  • Stock ColourBlack

Weight Ratings

  • Empty Weight12,950 lbs

Warranty

  • Axle6 year(s)
  • Paint1 year(s)

Tires

  • Size8 - 11R x 24.5
  • Mud FlapHeavy Duty Black or White
  • Wheels8 - 8.25 X 24.5 steel wheels

Suspension

  • Axle TypeTracking Axles
  • Axles2 - 25,000 lbs 71 1/2" tracking axles
  • Rating2 - 25,000 lbs

Lighting

  • Side MarkersDOT approved LED sealed lights, fully enclosed conduit with junction box
  • Rear LightsDOT approved LED sealed lights, fully enclosed conduit with junction box
